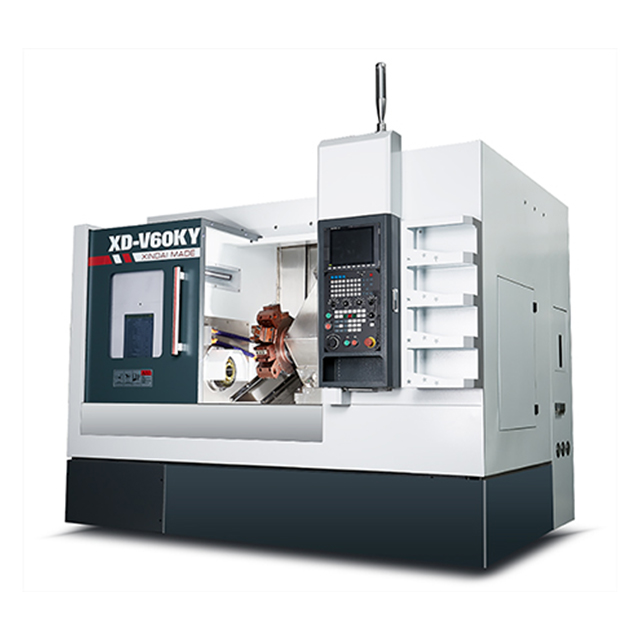

It can simultaneously realise multi-process turning and milling composite functions such as turning, milling, drilling, tapping, hobbing and slotting.
The machine base adopts the whole casting structure, which can effectively ensure the machine tool running for a long time without deformation, good rigidity and strong stability.
With powerful Y-axis power turret, it can be matched with multifunctional power head, which can replace most of the drilling and milling process of machining centre.
The spindle C-axis is equipped with high resolution magnetic ring encoder.
Continuous indexing (indexing accuracy up to 0.01 degrees), coaxial assembly with the machine tool, to ensure C-axis positioning accuracy and high reliability.
Matching hydraulic or servo programmable tailstock can effectively solve the problem of long axis turning and milling compound.
Sheet metal can be designed according to the needs of automation robot installation, and can be added at any time with robot, feeder, automatic chip conveyor and other automation devices.
Adopting fully enclosed protection design, effectively protect the important components such as screw, guide rail, bearing, etc. It is beautiful, stable and durable.
Adopting Taiwan new generation operating system, it can be quickly positioned in high-speed operation, effectively improving indexing efficiency and precision.
Widely used in automotive, electronics, mould, communication, military, wind power generation, medical equipment, instrumentation and other industries.
It can simultaneously realise multi-process turning and milling composite functions such as turning, milling, drilling, tapping, hobbing and slotting.
The machine base adopts the whole casting structure, which can effectively ensure the machine tool running for a long time without deformation, good rigidity and strong stability.
With powerful Y-axis power turret, it can be matched with multifunctional power head, which can replace most of the drilling and milling process of machining centre.
The spindle C-axis is equipped with high resolution magnetic ring encoder.
Continuous indexing (indexing accuracy up to 0.01 degrees), coaxial assembly with the machine tool, to ensure C-axis positioning accuracy and high reliability.
Matching hydraulic or servo programmable tailstock can effectively solve the problem of long axis turning and milling compound.
Sheet metal can be designed according to the needs of automation robot installation, and can be added at any time with robot, feeder, automatic chip conveyor and other automation devices.
Adopting fully enclosed protection design, effectively protect the important components such as screw, guide rail, bearing, etc. It is beautiful, stable and durable.
Adopting Taiwan new generation operating system, it can be quickly positioned in high-speed operation, effectively improving indexing efficiency and precision.
Widely used in automotive, electronics, mould, communication, military, wind power generation, medical equipment, instrumentation and other industries.
| Item/Model | Component name and unit | XD-60KY |
| Processing range | Max turning diameter(mm) | 480 |
| Max diameter on the pallet(mm) | / | |
| Max machining length(mm) | 580 | |
| Spindle through-hole diameter(mm) | 100 | |
| Max bar diameter(mm) | 80 | |
| Feed | Max X-axis travel(mm) | 500 |
| Max Y-axis travel(mm) | 100 | |
| Max Z-axis travel(mm) | 500 | |
| X-axis fast movement speed(m/min) | 18 | |
| Y-axis fast movement speed(m/min) | 18 | |
| Z-axis fast movement speed(m/min) | 18 | |
| Repeat positioning accuracy(mm) | ±0.002 | |
| X-axis guide rail width(mm) | 35 | |
| Z-axis guide rail width(mm) | 45 | |
| Lead screw diameter(mm) | X/Y/Z 40/32/40 | |
| Spindle | Spindle | A2-6 |
| Spindle motor power(KW) | 15 | |
| Max speed(r/min) | 2500 | |
| Toolpost | Turret form | 12-station servo power turret(290) |
| Tool holder specification(mm) | 8 stations/32 12 stations/25 | |
| Boring tool holder(mm) | 8 stations/50 12 stations/32 | |
| Adjacent tool changing time(S) | 0.35 | |
| Tailstock | Tailstock sleeve travel(mm) | 80 |
| Tailstock sleeve diameter(mm) | 80 | |
| Tailstock sleeve form(mm) | Hydraulic pressure | |
| Tailstock sleeve taper(Mohs) | 5# | |
| Specification | Machine weight(KG) | ≈5680 |
| Length * width * height(mm) | 2655*1935*2135 | |
| Other | Optional configuration | Chip conveyor,truss manipulator,feeder |
| Socpe of application | Various metal disc,shafts with Y-axis turning and milling combined machining |
