High-Performance Spindle: A2-5 through-hole spindle (4000r/min, 7.5-11KW) for heavy-duty cutting.
Precision Drive: Taiwan HIWIN/PMI ball screws (X/Y/Z-axis) ensure dynamic response and long-term stability.

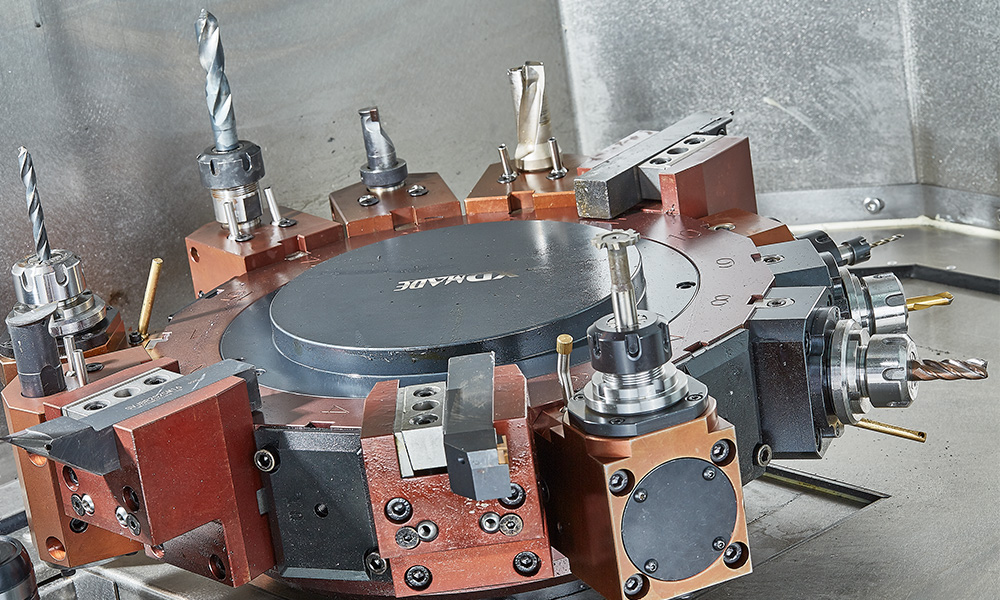

Versatile Turret: 12-station servo turret (BMT45 interface) supports milling, drilling, and live tooling.
Smart Control: Syntec 22TB-E system enables multi-axis synchronization and automation integration.
Industrial-Grade Build: One-piece cast iron bed with hydraulic clamping for enhanced rigidity.
Ideal for batch production of precision components in automotive, aerospace, and medical industries.
 |  |
| Item/ Model | Component name and unit | XD-40KY |
| Processing range | Max turning diameter(mm) | 450 |
| Max diameter on the pallet(mm) | / | |
| Max machining length(mm) | 380 | |
| Spindle through-hole diameter(mm) | 65 | |
| Max bar diameter(mm) | 52 | |
| Feed | Max X-axis travel(mm) | 400 |
| Max Y-axis travel(mm) | 70 | |
| Max Z-axis travel(mm) | 400 | |
| X-axis fast movement speed(m/min) | 18 | |
| Y-axis fast movement speed(m/min) | 18 | |
| Z-axis fast movement speed(m/min) | 18 | |
| Repeat positioning accuracy(mm) | ±0.002 | |
| X-axis guide rail width(mm) | 30 | |
| Z-axis guide rail width(mm) | 35 | |
| Lead screw diameter(mm) | X/Y/Z 32 | |
| Spindle | Spindle | A2-6 |
| Spindle motor power(KW) | 11 | |
| Max speed(r/min) | 3500 | |
| Toolpost | Turret form | 12-station servo power turret(240) |
| Tool holder specification(mm) | 8 stations/25 12 stations/25 | |
| Boring tool holder(mm) | 8 stations/32 12 stations/32 | |
| Adjacent tool changing time(S) | 0.35 | |
| Tailstock | Tailstock sleeve travel(mm) | 80 |
| Tailstock sleeve diameter(mm) | 80 | |
| Tailstock sleeve form(mm) | Hydraulic pressure | |
| Tailstock sleeve taper(Mohs) | 4# | |
| Specification | Machine weight(KG) | ≈3800 |
| Length * width * height(mm) | 2450*1685*1935 | |

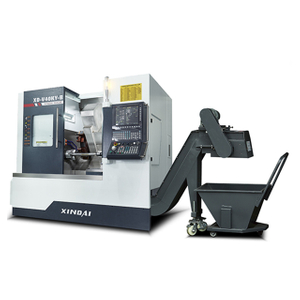

| Other | Optional configuration | Chip conveyor,truss manipulator,feeder |
| Socpe of application | Various metal disc,shafts with Y-axis turning and milling combined machining |
