5-axis turning milling machines are a powerful and versatile tool in modern manufacturing, offering precision and efficiency that are essential in producing complex components. Unlike traditional machining methods that rely on 3-axis or 4-axis machines, 5-axis turning milling machines are capable of moving along five different axes, allowing for multi-angle machining in a single setup. This advanced capability enables manufacturers to create intricate parts with tight tolerances and improved surface finishes, all while reducing production time. Industries ranging from aerospace to automotive and medical manufacturing increasingly rely on these machines to meet the growing demands for high-performance components.
A 5-axis turning milling machine combines the functions of both turning and milling in a single system. The term “5-axis” refers to the machine’s ability to move in five different directions simultaneously, which is essential for machining highly complex parts with precision. These axes are typically labeled as X, Y, Z, A, and C.
X, Y, Z Axes: These are the traditional linear axes of a CNC machine. The X and Y axes control the horizontal and vertical movements of the workpiece, while the Z-axis controls the up-and-down motion of the tool. These three axes are responsible for the primary movements required in basic machining operations, such as milling and turning, and provide the fundamental framework for machining in a linear path.
A and C Axes: The A and C axes are rotational axes that enable the workpiece or the tool to rotate during machining. The A-axis typically rotates around the X-axis, allowing for tilting movements, while the C-axis rotates around the Z-axis, enabling precise angular adjustments. These rotational movements allow for multi-angle machining, where parts can be worked on from various angles without repositioning the workpiece. This flexibility is critical for producing intricate geometries, as it eliminates the need for multiple setups, which saves time and enhances precision.
The ability of 5-axis machines to move along all five axes simultaneously means that multiple machining operations can be performed in one cycle. This simultaneous movement significantly boosts efficiency, allowing manufacturers to perform complex tasks—such as drilling, milling, and turning—within a single setup. It reduces the need for repositioning the workpiece and minimizes setup time, improving overall productivity.

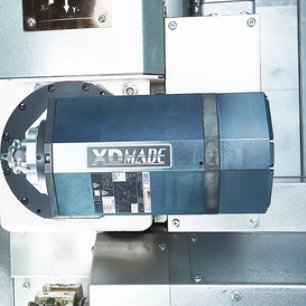

A key feature in 5-axis machines is the swiveling spindle, which allows for a wide range of movements, including tilting and rotating. This flexibility gives access to multiple surfaces of the workpiece during a single cycle, making it ideal for machining complex shapes. Additionally, indexing heads allow precise positioning of the workpiece at different angles, ensuring that each surface can be machined to the highest level of accuracy. This combination of movements and features makes 5-axis turning milling machines highly efficient and capable of producing complex parts with exceptional precision.
The versatility and advanced functionality of 5-axis turning milling machines offer several key advantages, particularly in precision, efficiency, and complexity.
Precision and Accuracy: Achieving tight tolerances is essential in many industries, such as aerospace, automotive, and medical manufacturing. 5-axis turning milling machines excel at producing parts with extremely high precision, often within microns. The ability to machine parts from multiple angles in a single setup ensures that the geometry is maintained to exact specifications. Whether producing turbine blades with complex contours or delicate surgical tools, these machines deliver the accuracy required for high-performance components.
Reduced Setup Time: Traditional machining often requires multiple setups to work on different sides of a part. In contrast, 5-axis turning milling machines reduce the need for repositioning, as they can machine all faces of the part in one setup. This significantly cuts down on setup time, making the production process faster and more efficient. Additionally, fewer setups reduce the risk of error or misalignment between steps, leading to higher-quality parts.
Increased Productivity: The ability to perform multiple operations—turning, milling, drilling—during a single cycle increases productivity. The simultaneous movement of all five axes means that manufacturers can produce complex parts faster, cutting down on overall production time. Since the workpiece does not need to be moved between different machines, there is less downtime, allowing for continuous production and faster turnaround times.
Improved Surface Finish: The advanced capabilities of 5-axis turning milling machines also ensure superior surface finishes. By eliminating the need for repositioning, these machines maintain the integrity of the part's geometry and produce smoother, more consistent surfaces. This is especially important in industries like aerospace, where parts need to meet both functional and aesthetic standards.
Complex Geometries: 5-axis turning milling machines are capable of machining intricate parts with complex geometries that would be nearly impossible or highly inefficient using traditional methods. The ability to cut undercuts, deep cavities, and odd angles in a single pass without requiring additional tools or setups makes these machines ideal for producing highly detailed components, such as turbine blades, gearboxes, and medical implants.
The versatility of 5-axis turning milling machines has made them indispensable across a wide range of industries. Here are some of the main sectors where these machines are used:
Aerospace: One of the most demanding industries for precision manufacturing, aerospace relies heavily on 5-axis turning milling machines. Parts such as turbine blades, engine components, and structural parts require complex geometries, tight tolerances, and smooth finishes. 5-axis machines are essential in producing these parts efficiently, as they can handle multi-angle machining and high-performance materials such as titanium and high-strength alloys.
Automotive: The automotive industry requires high-precision components for everything from engine blocks and transmission components to precision gears and suspension parts. 5-axis turning milling machines are used to create complex, lightweight, and durable components that meet the rigorous standards of the automotive sector. These machines improve the efficiency of production while ensuring that all parts are manufactured to exact specifications.
Medical: In the medical field, 5-axis turning milling machines are used to manufacture implants, surgical tools, and prosthetics that require a high level of precision. These machines can produce intricate and highly detailed components from biocompatible materials, such as titanium and stainless steel, which are essential for ensuring safety and functionality in medical applications.
General Manufacturing: In general manufacturing, 5-axis turning milling machines are used to produce a wide variety of parts for industries such as robotics, electronics, and energy. Whether it’s producing precision gears, industrial valves, or high-performance shafts, 5-axis machines are capable of handling a wide range of materials and complex designs. Their ability to perform multiple operations in one cycle makes them highly efficient for high-volume production.
5-axis turning milling machines have become an essential tool in modern manufacturing, offering unmatched precision, speed, and efficiency. Their ability to perform complex, multi-angle machining in a single setup makes them indispensable for producing high-performance components in industries such as aerospace, automotive, and medical manufacturing. As demand for more intricate designs and faster production times grows, 5-axis turning milling machines are poised to be a key technology for manufacturers aiming to stay competitive. With continuous advancements in automation, software control, and materials technology, these machines will remain at the forefront of shaping the future of manufacturing.
For those looking to explore how 5-axis turning milling machines can revolutionize their production processes, Daying Xindai Machinery Manufacturing Co., Ltd. offers cutting-edge solutions that meet the highest industry standards. With their advanced machines and expertise in precision engineering, Daying Xindai ensures top-tier performance and reliability. To learn more or inquire about how their 5-axis machines can enhance your manufacturing capabilities, visit their website or contact their team for a personalized consultation.
