TMS-360ZT
XDMADE

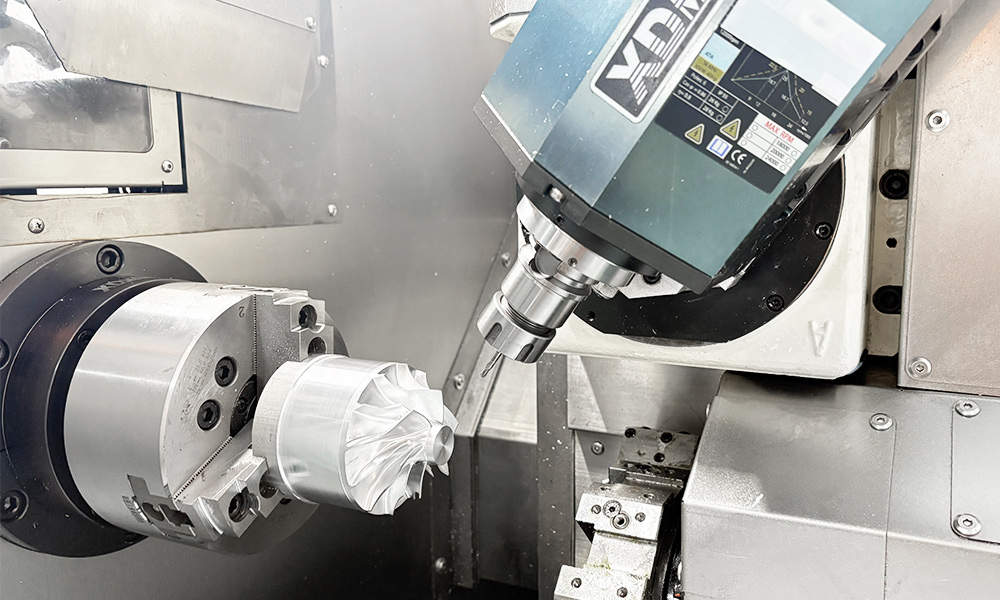

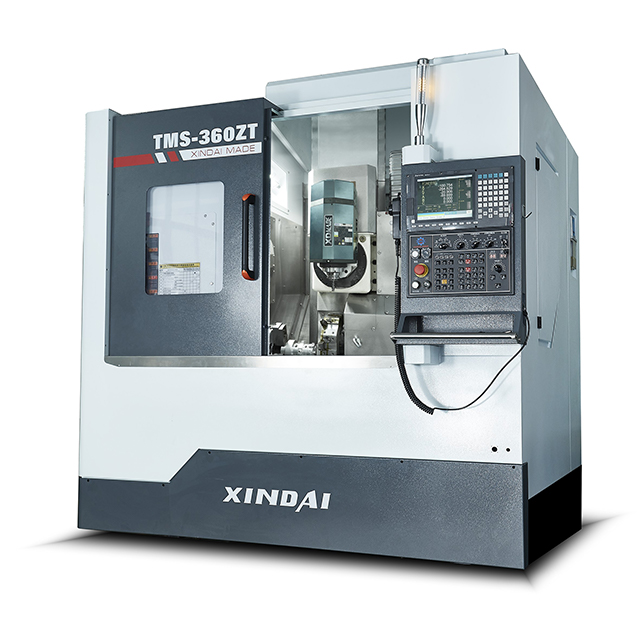

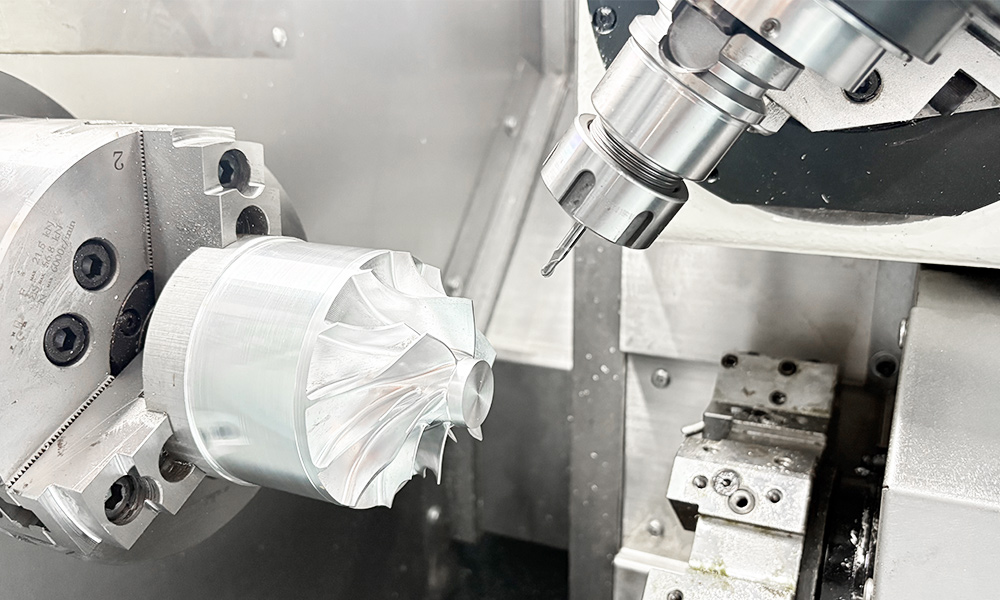

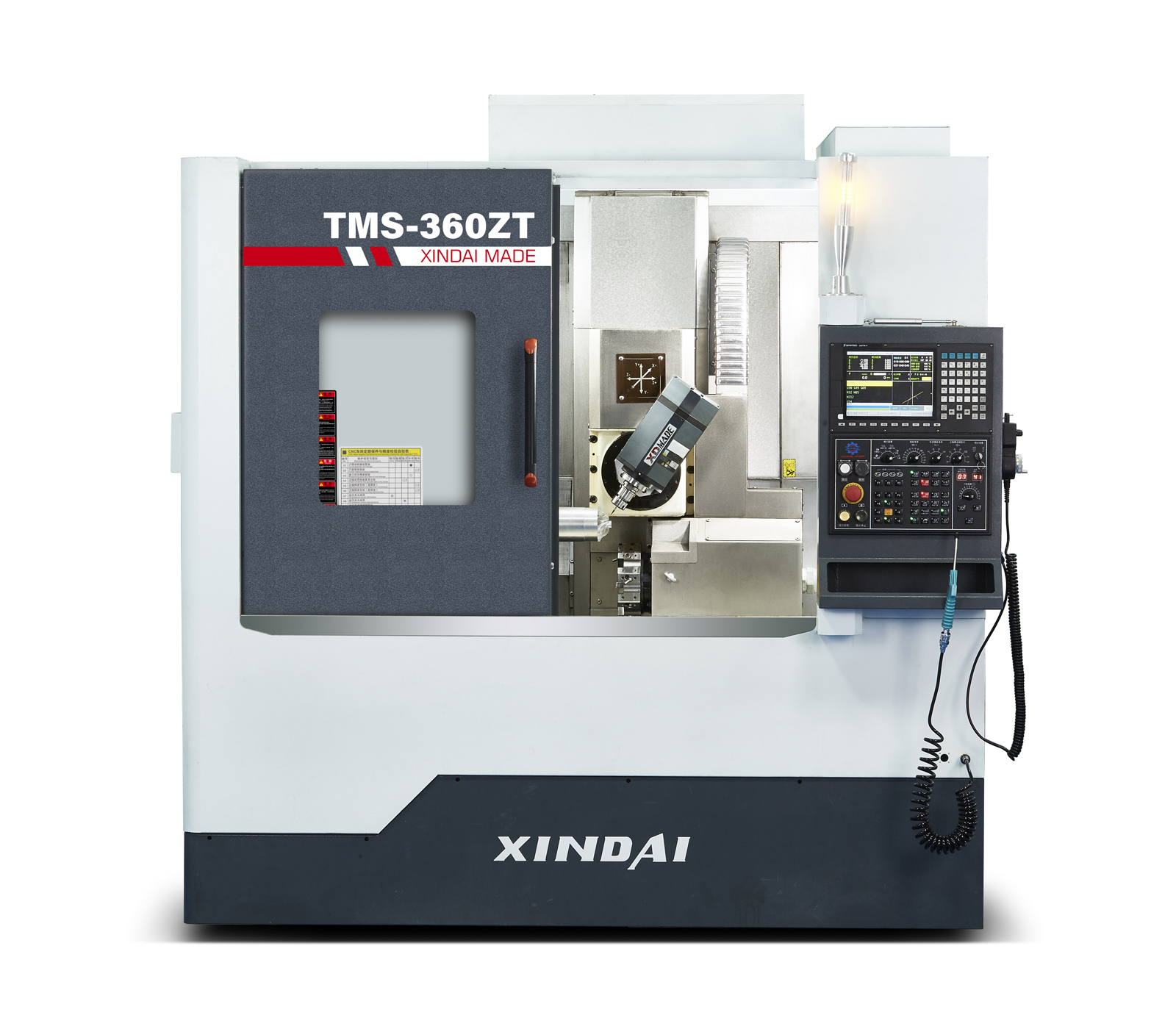

The Five Axis Turning And Milling CNC Lathe TMS-360ZT is a fully integrated 5-axis turning center engineered to combine turning, milling, and drilling capabilities in a single setup. This eliminates the need for multiple machines, reduces part handling time, and minimizes errors caused by repeated workpiece repositioning.
At its core, the TMS-360ZT features a high-speed HSK-A40 spindle with a maximum speed of 24,000 RPM (equipped with an ER25 collet for secure tool holding) and a main spindle rated at 4,000 RPM (model: A2-5), ensuring rapid material removal without compromising precision. The machine delivers exceptional repeatability of ±0.002mm across the XYZ axes—critical for applications where dimensional accuracy directly impacts product functionality.
Key structural specifications include a maximum swing diameter of Φ220mm (ideal for medium-sized workpieces) and a robust frame built for long-term stability. Standard equipment such as a hydraulic chuck and auto-lubrication system further enhances operational efficiency, while compatibility with optional accessories allows customization for specific production needs. Powered by the Taiwan Shinetech control system, the TMS-360ZT offers intuitive programming and real-time process monitoring, making it accessible to both experienced operators and teams scaling their precision machining capabilities.
The TMS-360ZT’s 5-axis synchronization is a game-changer for complex part manufacturing, enabling seamless coordination between the swivel head, C-axis, and linear axes.

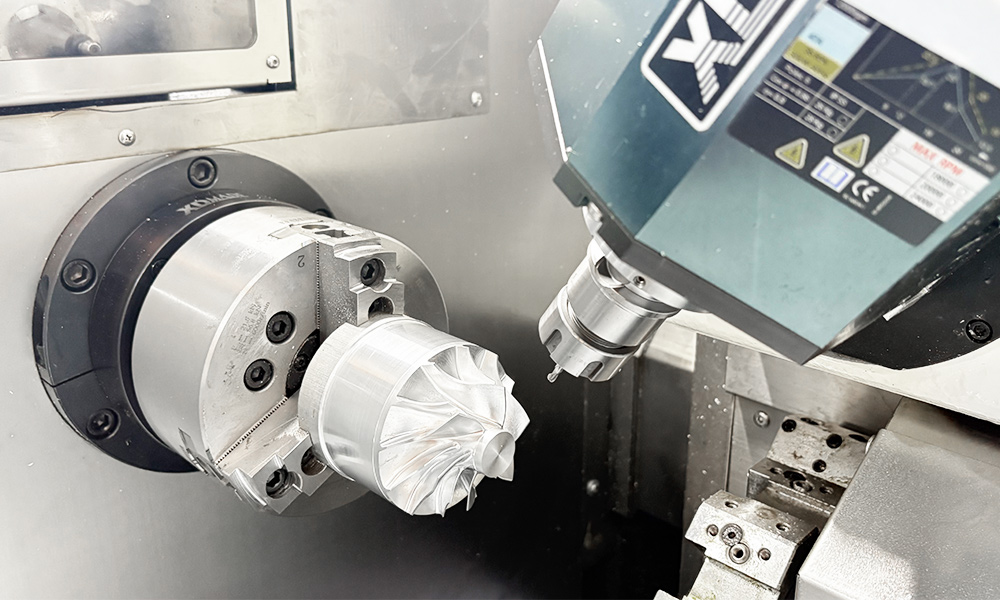

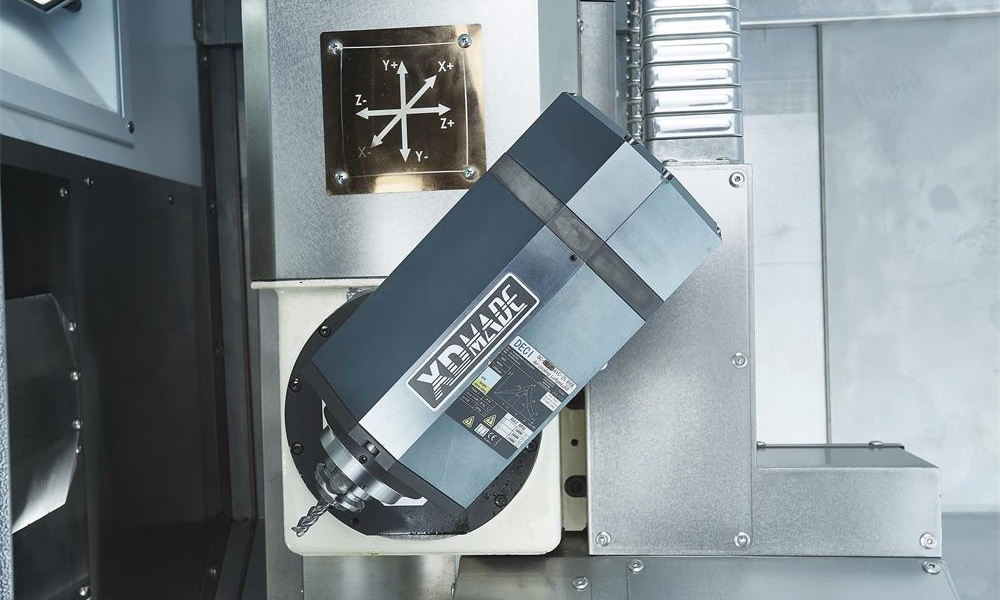

Swivel Head Flexibility: The machine’s swivel head supports a 0-150° tilt range, allowing access to multiple angles of the workpiece without reorientation. This is particularly valuable for machining angled holes, tapered surfaces, and off-center features that traditional 3-axis lathes cannot handle.
High-Precision C-Axis Indexing: With a C-axis indexing accuracy of ≤0.006°, the TMS-360ZT ensures precise circumferential positioning. This feature is essential for tasks like milled slots, cross-drilling, and gear cutting on cylindrical workpieces.
The spindle system of the TMS-360ZT is optimized for both speed and accuracy, catering to demanding milling and turning applications.

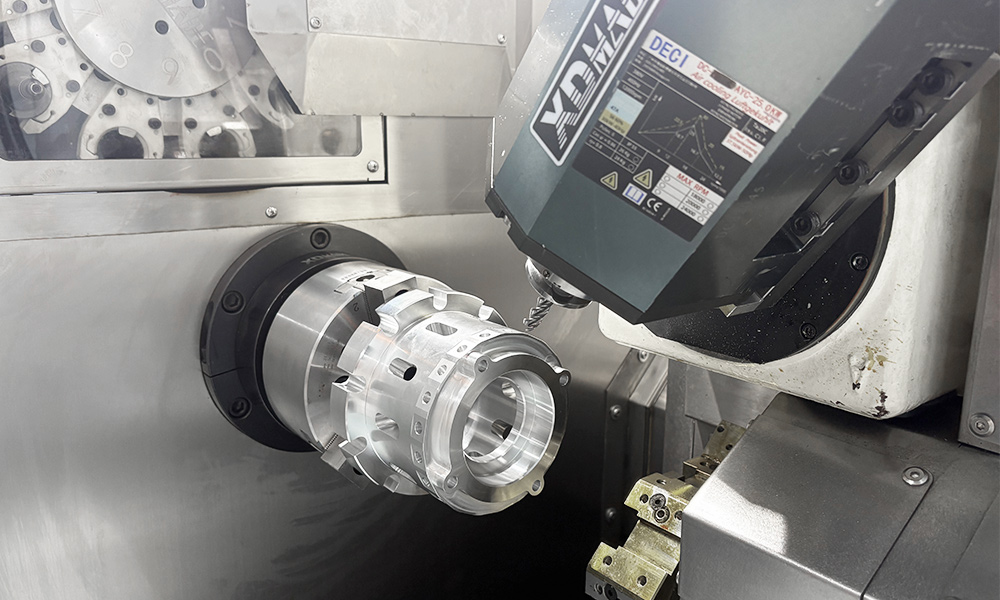

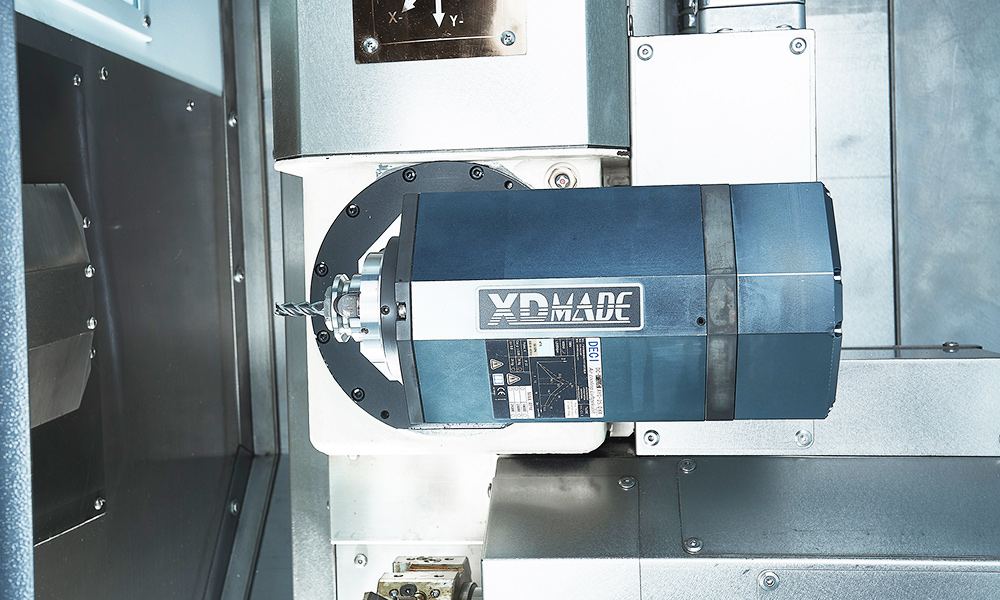

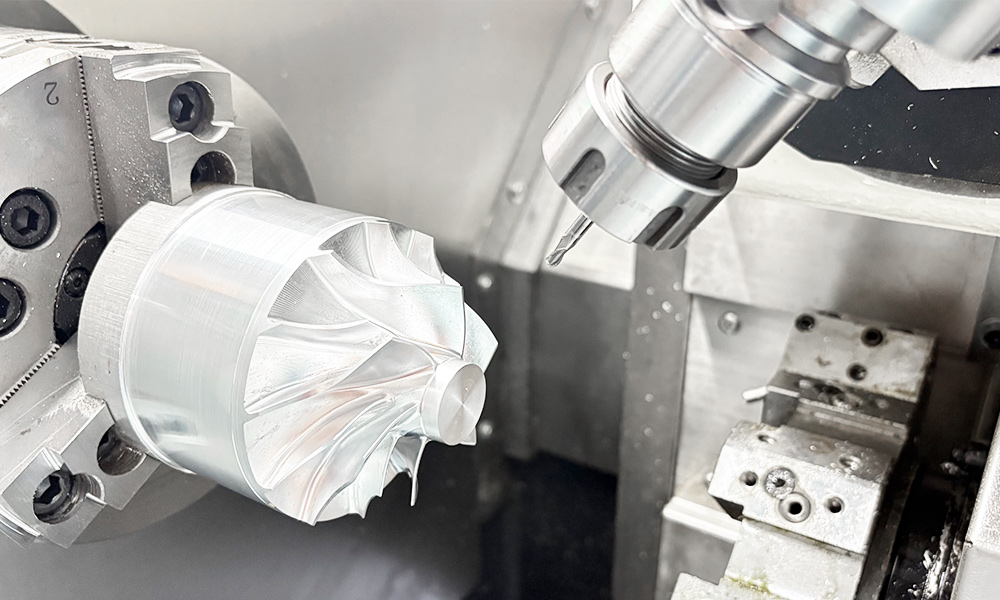

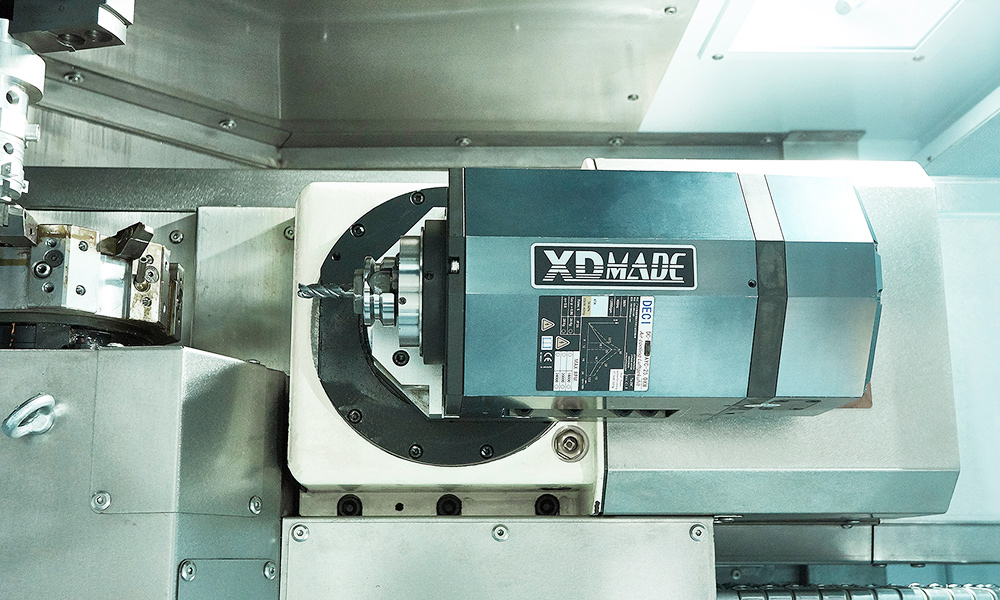

HSK-A40 Milling Spindle: The 24,000 RPM HSK-A40 spindle is designed for high-speed precision milling. Its compact design reduces tool runout, while the ER25 collet system provides strong clamping force—ensuring tools stay stable even at maximum rotational speeds. This makes the TMS-360ZT ideal for machining soft metals (e.g., aluminum) and hard alloys (e.g., titanium) alike.
Main Turning Spindle: The 4,000 RPM A2-5 main spindle features a through-hole diameter of 56mm and supports a maximum bar diameter of 45mm. Its high torque output enables efficient turning of thick-walled components, while the hydraulic chuck (standard) ensures secure workpiece clamping during high-speed operation.
Durability and stability are foundational to the TMS-360ZT’s design, ensuring consistent performance even in high-volume production environments.
Premium Motion Components: The machine uses Taiwan-manufactured HWIN/PMI Φ32 ball screws and 35mm linear guides for the X, Y, and Z axes. These components minimize friction, reduce wear, and maintain precision over years of use—critical for avoiding dimensional drift in long production runs.
Heavy-Duty Bed Construction: The bed is cast from HT250 gray iron, a material known for its high rigidity and vibration damping properties. This reduces chatter during high-speed machining, protecting tool life and improving surface finish quality of the workpiece.
The Taiwan Shinetech control system is the brain of the TMS-360ZT, combining advanced functionality with user-friendly operation.
Rapid Traverse Speed: The system supports a rapid traverse speed of 18m/min across the XYZ axes, reducing non-cutting time and boosting overall productivity.
Intuitive Programming Interface: The control panel features a clear display and simplified programming tools, including support for G-code and conversational programming. This lowers the learning curve for operators and reduces setup time for new jobs.
Real-Time Monitoring: Built-in sensors track spindle temperature, axis position, and tool wear, providing real-time alerts to prevent machine damage and ensure consistent part quality.
The TMS-360ZT is designed to adapt to diverse production needs, with standard and optional features that enhance its versatility.
Standard Equipment: A 6-inch hydraulic chuck (for secure workpiece holding) and auto-lubrication system (for maintaining component health) come standard, ensuring ready-to-use functionality out of the box.
Optional Accessories: Customers can add a chip conveyor (for automated waste removal), a tool length setter (for faster tool setup), or a high-pressure coolant system (for machining heat-sensitive materials). These options allow the TMS-360ZT to fit seamlessly into existing production lines.
The Five Axis Turning And Milling CNC Lathe TMS-360ZT is tailored for industries where precision, complexity, and efficiency are non-negotiable. Its ability to handle multi-process machining in one setup makes it a versatile solution for the following sectors:
Aerospace parts (e.g., turbine blades, engine housings, and fuel system components) require extreme precision and compliance with strict industry standards. The TMS-360ZT’s ±0.002mm repeatability and 24,000 RPM high-speed spindle enable machining of thin-walled aerospace alloys (e.g., Inconel, aluminum-lithium) without deformation. The 5-axis synchronization also allows for the creation of complex curved surfaces and angled ports—critical for optimizing airflow and fuel efficiency in aerospace systems.
Molds and dies (used in plastic injection, metal stamping, and die-casting) demand intricate cavity designs and smooth surface finishes. The TMS-360ZT’s 0-150° swivel head and ≤0.006° C-axis accuracy enable precise machining of undercuts, draft angles, and complex cavities in mold steels (e.g., H13, P20). The machine’s vibration-damping HT250 bed also ensures consistent surface quality, reducing the need for post-machining polishing and shortening mold lead times.
Medical devices (e.g., orthopedic implants, surgical instruments, and diagnostic equipment components) require biocompatible materials (e.g., titanium, stainless steel 316L) and micron-level precision. The TMS-360ZT’s HSK-A40 spindle (with low runout) and ER25 collet system ensure precise machining of small, intricate features—such as threaded holes in implants or sharp edges on surgical tools. Additionally, the machine’s clean design and optional coolant filtration system meet the hygiene requirements of medical manufacturing.
High-performance automotive components (e.g., transmission gears, fuel injectors, and turbocharger parts) need to withstand extreme temperatures and mechanical stress. The TMS-360ZT’s 4,000 RPM main spindle (with high torque) efficiently machines hardened steels and aluminum alloys, while the 18m/min rapid traverse speed reduces cycle times for high-volume production. The 5-axis capability also allows for the machining of complex gear profiles and asymmetrical components, improving automotive system performance.
Industries such as energy (e.g., hydraulic valves, pump housings) and robotics (e.g., gearboxes, actuator parts) rely on components with multi-functional features. The TMS-360ZT’s ability to combine turning, milling, and drilling in one setup eliminates the need for multiple machines, reducing production costs and minimizing part handling errors. Its flexible configuration (e.g., optional chip conveyor) also adapts to the heavy chip generation of industrial metalworking, ensuring continuous operation.
The TMS-360ZT achieves high precision through a combination of advanced components and engineering: its ±0.002mm XYZ repeatability is enabled by premium HWIN/PMI Φ32 ball screws and 35mm linear guides, which minimize axis backlash. The Taiwan Shinetech control system provides real-time position feedback, while the HT250 cast iron bed dampens vibration—preventing dimensional errors during high-speed machining. Additionally, the HSK-A40 spindle (24,000 RPM) and ≤0.006° C-axis indexing ensure precise tool positioning and workpiece rotation, critical for complex, tight-tolerance parts.
The Five Axis Turning And Milling CNC Lathe TMS-360ZT is equipped with the Taiwan Shinetech control system, a industry-proven solution for multi-axis CNC machines. This system offers several operational benefits: it supports 18m/min rapid traverse speeds to reduce non-cutting time, features an intuitive interface for both G-code and conversational programming (lowering operator training time), and includes real-time monitoring tools for spindle temperature, tool wear, and axis position. These features streamline setup, reduce errors, and ensure consistent performance—even for complex 5-axis jobs.
The Five Axis Turning And Milling CNC Lathe TMS-360ZT supports a maximum turning diameter of Φ220mm, making it ideal for medium-sized workpieces. For bar machining, the main spindle (model A2-5) has a through-hole diameter of 56mm, allowing it to handle bars with a maximum diameter of 45mm. This capacity balances versatility for small to medium parts, making the machine suitable for industries ranging from medical device manufacturing (small implants) to automotive (mid-sized transmission components).
Yes, the Five Axis Turning And Milling CNC Lathe TMS-360ZT offers flexible configuration options to meet unique production requirements. Standard equipment includes a 6-inch hydraulic chuck and auto-lubrication system, but customers can add optional accessories such as a chip conveyor (for automated chip removal), a tool length setter (for faster tool changeovers), a high-pressure coolant system (for machining heat-sensitive materials like titanium), or a robotic loader (for lights-out production). Xindai CNC (XDMADE) also provides tailored solutions for specialized applications—such as custom tool holders or modified spindle speeds—upon request.
The Five Axis Turning And Milling CNC Lathe TMS-360ZT has a net weight of 3.85T and dimensions of 2250×1800×2300mm (length × width × height). Its compact footprint (compared to other 5-axis turn-mill centers) makes it suitable for medium-sized workshops with limited space. The machine’s heavy weight (3.85T) is due to its HT250 cast iron bed, which enhances stability but requires proper floor reinforcement (e.g., concrete flooring capable of supporting heavy machinery). Xindai CNC provides detailed installation guidelines to help customers integrate the TMS-360ZT into their existing workshop layout efficiently.
 |  |
 |  |
 |  |
 |  |
The Five Axis Turning And Milling CNC Lathe TMS-360ZT is a fully integrated 5-axis turning center engineered to combine turning, milling, and drilling capabilities in a single setup. This eliminates the need for multiple machines, reduces part handling time, and minimizes errors caused by repeated workpiece repositioning.
At its core, the TMS-360ZT features a high-speed HSK-A40 spindle with a maximum speed of 24,000 RPM (equipped with an ER25 collet for secure tool holding) and a main spindle rated at 4,000 RPM (model: A2-5), ensuring rapid material removal without compromising precision. The machine delivers exceptional repeatability of ±0.002mm across the XYZ axes—critical for applications where dimensional accuracy directly impacts product functionality.
Key structural specifications include a maximum swing diameter of Φ220mm (ideal for medium-sized workpieces) and a robust frame built for long-term stability. Standard equipment such as a hydraulic chuck and auto-lubrication system further enhances operational efficiency, while compatibility with optional accessories allows customization for specific production needs. Powered by the Taiwan Shinetech control system, the TMS-360ZT offers intuitive programming and real-time process monitoring, making it accessible to both experienced operators and teams scaling their precision machining capabilities.
The TMS-360ZT’s 5-axis synchronization is a game-changer for complex part manufacturing, enabling seamless coordination between the swivel head, C-axis, and linear axes.
Swivel Head Flexibility: The machine’s swivel head supports a 0-150° tilt range, allowing access to multiple angles of the workpiece without reorientation. This is particularly valuable for machining angled holes, tapered surfaces, and off-center features that traditional 3-axis lathes cannot handle.
High-Precision C-Axis Indexing: With a C-axis indexing accuracy of ≤0.006°, the TMS-360ZT ensures precise circumferential positioning. This feature is essential for tasks like milled slots, cross-drilling, and gear cutting on cylindrical workpieces.
The spindle system of the TMS-360ZT is optimized for both speed and accuracy, catering to demanding milling and turning applications.
HSK-A40 Milling Spindle: The 24,000 RPM HSK-A40 spindle is designed for high-speed precision milling. Its compact design reduces tool runout, while the ER25 collet system provides strong clamping force—ensuring tools stay stable even at maximum rotational speeds. This makes the TMS-360ZT ideal for machining soft metals (e.g., aluminum) and hard alloys (e.g., titanium) alike.
Main Turning Spindle: The 4,000 RPM A2-5 main spindle features a through-hole diameter of 56mm and supports a maximum bar diameter of 45mm. Its high torque output enables efficient turning of thick-walled components, while the hydraulic chuck (standard) ensures secure workpiece clamping during high-speed operation.
Durability and stability are foundational to the TMS-360ZT’s design, ensuring consistent performance even in high-volume production environments.
Premium Motion Components: The machine uses Taiwan-manufactured HWIN/PMI Φ32 ball screws and 35mm linear guides for the X, Y, and Z axes. These components minimize friction, reduce wear, and maintain precision over years of use—critical for avoiding dimensional drift in long production runs.
Heavy-Duty Bed Construction: The bed is cast from HT250 gray iron, a material known for its high rigidity and vibration damping properties. This reduces chatter during high-speed machining, protecting tool life and improving surface finish quality of the workpiece.
The Taiwan Shinetech control system is the brain of the TMS-360ZT, combining advanced functionality with user-friendly operation.
Rapid Traverse Speed: The system supports a rapid traverse speed of 18m/min across the XYZ axes, reducing non-cutting time and boosting overall productivity.
Intuitive Programming Interface: The control panel features a clear display and simplified programming tools, including support for G-code and conversational programming. This lowers the learning curve for operators and reduces setup time for new jobs.
Real-Time Monitoring: Built-in sensors track spindle temperature, axis position, and tool wear, providing real-time alerts to prevent machine damage and ensure consistent part quality.
The TMS-360ZT is designed to adapt to diverse production needs, with standard and optional features that enhance its versatility.
Standard Equipment: A 6-inch hydraulic chuck (for secure workpiece holding) and auto-lubrication system (for maintaining component health) come standard, ensuring ready-to-use functionality out of the box.
Optional Accessories: Customers can add a chip conveyor (for automated waste removal), a tool length setter (for faster tool setup), or a high-pressure coolant system (for machining heat-sensitive materials). These options allow the TMS-360ZT to fit seamlessly into existing production lines.
The Five Axis Turning And Milling CNC Lathe TMS-360ZT is tailored for industries where precision, complexity, and efficiency are non-negotiable. Its ability to handle multi-process machining in one setup makes it a versatile solution for the following sectors:
Aerospace parts (e.g., turbine blades, engine housings, and fuel system components) require extreme precision and compliance with strict industry standards. The TMS-360ZT’s ±0.002mm repeatability and 24,000 RPM high-speed spindle enable machining of thin-walled aerospace alloys (e.g., Inconel, aluminum-lithium) without deformation. The 5-axis synchronization also allows for the creation of complex curved surfaces and angled ports—critical for optimizing airflow and fuel efficiency in aerospace systems.
Molds and dies (used in plastic injection, metal stamping, and die-casting) demand intricate cavity designs and smooth surface finishes. The TMS-360ZT’s 0-150° swivel head and ≤0.006° C-axis accuracy enable precise machining of undercuts, draft angles, and complex cavities in mold steels (e.g., H13, P20). The machine’s vibration-damping HT250 bed also ensures consistent surface quality, reducing the need for post-machining polishing and shortening mold lead times.
Medical devices (e.g., orthopedic implants, surgical instruments, and diagnostic equipment components) require biocompatible materials (e.g., titanium, stainless steel 316L) and micron-level precision. The TMS-360ZT’s HSK-A40 spindle (with low runout) and ER25 collet system ensure precise machining of small, intricate features—such as threaded holes in implants or sharp edges on surgical tools. Additionally, the machine’s clean design and optional coolant filtration system meet the hygiene requirements of medical manufacturing.
High-performance automotive components (e.g., transmission gears, fuel injectors, and turbocharger parts) need to withstand extreme temperatures and mechanical stress. The TMS-360ZT’s 4,000 RPM main spindle (with high torque) efficiently machines hardened steels and aluminum alloys, while the 18m/min rapid traverse speed reduces cycle times for high-volume production. The 5-axis capability also allows for the machining of complex gear profiles and asymmetrical components, improving automotive system performance.
Industries such as energy (e.g., hydraulic valves, pump housings) and robotics (e.g., gearboxes, actuator parts) rely on components with multi-functional features. The TMS-360ZT’s ability to combine turning, milling, and drilling in one setup eliminates the need for multiple machines, reducing production costs and minimizing part handling errors. Its flexible configuration (e.g., optional chip conveyor) also adapts to the heavy chip generation of industrial metalworking, ensuring continuous operation.
The TMS-360ZT achieves high precision through a combination of advanced components and engineering: its ±0.002mm XYZ repeatability is enabled by premium HWIN/PMI Φ32 ball screws and 35mm linear guides, which minimize axis backlash. The Taiwan Shinetech control system provides real-time position feedback, while the HT250 cast iron bed dampens vibration—preventing dimensional errors during high-speed machining. Additionally, the HSK-A40 spindle (24,000 RPM) and ≤0.006° C-axis indexing ensure precise tool positioning and workpiece rotation, critical for complex, tight-tolerance parts.
The Five Axis Turning And Milling CNC Lathe TMS-360ZT is equipped with the Taiwan Shinetech control system, a industry-proven solution for multi-axis CNC machines. This system offers several operational benefits: it supports 18m/min rapid traverse speeds to reduce non-cutting time, features an intuitive interface for both G-code and conversational programming (lowering operator training time), and includes real-time monitoring tools for spindle temperature, tool wear, and axis position. These features streamline setup, reduce errors, and ensure consistent performance—even for complex 5-axis jobs.
The Five Axis Turning And Milling CNC Lathe TMS-360ZT supports a maximum turning diameter of Φ220mm, making it ideal for medium-sized workpieces. For bar machining, the main spindle (model A2-5) has a through-hole diameter of 56mm, allowing it to handle bars with a maximum diameter of 45mm. This capacity balances versatility for small to medium parts, making the machine suitable for industries ranging from medical device manufacturing (small implants) to automotive (mid-sized transmission components).
Yes, the Five Axis Turning And Milling CNC Lathe TMS-360ZT offers flexible configuration options to meet unique production requirements. Standard equipment includes a 6-inch hydraulic chuck and auto-lubrication system, but customers can add optional accessories such as a chip conveyor (for automated chip removal), a tool length setter (for faster tool changeovers), a high-pressure coolant system (for machining heat-sensitive materials like titanium), or a robotic loader (for lights-out production). Xindai CNC (XDMADE) also provides tailored solutions for specialized applications—such as custom tool holders or modified spindle speeds—upon request.
The Five Axis Turning And Milling CNC Lathe TMS-360ZT has a net weight of 3.85T and dimensions of 2250×1800×2300mm (length × width × height). Its compact footprint (compared to other 5-axis turn-mill centers) makes it suitable for medium-sized workshops with limited space. The machine’s heavy weight (3.85T) is due to its HT250 cast iron bed, which enhances stability but requires proper floor reinforcement (e.g., concrete flooring capable of supporting heavy machinery). Xindai CNC provides detailed installation guidelines to help customers integrate the TMS-360ZT into their existing workshop layout efficiently.
| |
| |
| |
| |
