The machine tool overall casting bed, bed bed foot with resin sand casting, aging treatment, the use of supersonic quenching. The structure is stable, rigid and reliable.
The machine tool internal protection for the whole mobile internal protection, than the traditional machine tool internal protection effect to enhance seventy per cent. Effectively block the iron slag and cutting water and debris into the screw guide, better protection of electrical equipment. Not only is conducive to the maintenance and cleaning of the machine tool, but also extends the service life of the machine tool.
The machine tool uses automatic lubrication metering oil row, to ensure that every position that needs lubrication has lubricant into.
Machine control system and servo are bus absolute value, no need to return to zero point when switching on the machine.
The machine tool overall casting bed, bed bed foot with resin sand casting, aging treatment, the use of supersonic quenching. The structure is stable, rigid and reliable.
The machine tool internal protection for the whole mobile internal protection, than the traditional machine tool internal protection effect to enhance seventy per cent. Effectively block the iron slag and cutting water and debris into the screw guide, better protection of electrical equipment. Not only is conducive to the maintenance and cleaning of the machine tool, but also extends the service life of the machine tool.
The machine tool uses automatic lubrication metering oil row, to ensure that every position that needs lubrication has lubricant into.
Machine control system and servo are bus absolute value, no need to return to zero point when switching on the machine.

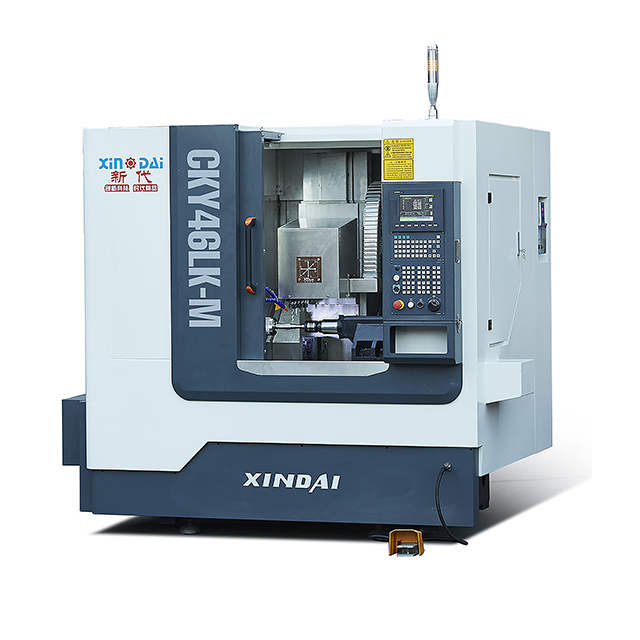

| Item Model | Component name and unit | CKY-46LK-M |
| Processing range | Max turning diameter over bed(mm) | Φ500 |
| Max diameter on the pallet(mm) | / | |
| Max machining length(mm) | 380 | |
| Max bar diameter(mm) | Φ45 | |
| Feed | Max X-axis travel(mm) | 500 |
| Max Y-axis travel(mm) | 500 | |
| Max Z-axis travel(mm) | 400 | |
| X-axis fast movement speed(m/min) | 24 | |
| Y-axis fast movement speed(m/min) | 18 | |
| Z-axis fast movement speed(m/min) | 24 | |
| Repeat positioning accuracy(mm) | ±0.004 | |
| Spindle | Sleeve spindle unit(model) | A2-5 |
| Chuck size(Inch) | 6 | |
| Spindle motor power(KW) | 7.5 | |
| Max speed(r/min) | 4000 | |
| Spindle through-hole diameter(mm) | Φ56 | |
| Toolpost | Turret form | Composite tool holder |
| Tool holder specification(mm) | 16/20 | |
| Boring tool holder(mm) | Φ20 | |
| Tailstock | Tailstock sleeve travel(mm) | 100 |
| Tailstock sleeve diameter(mm) | 80 | |
| Tailstock sleeve form(mm) | hydraulic | |
| Tailstock sleeve taper(Mohs) | 4# | |
| Specification | Machine net weight(KG) | ≈3600 |
| Length * width * height(mm) | 2250*1800*2300 | |
| Other | Optional configuration | Chip conveyor,chuck,feeder |
| Socpe of application | Turning,drilling,taooing,milling(metal disc,shaft) |
