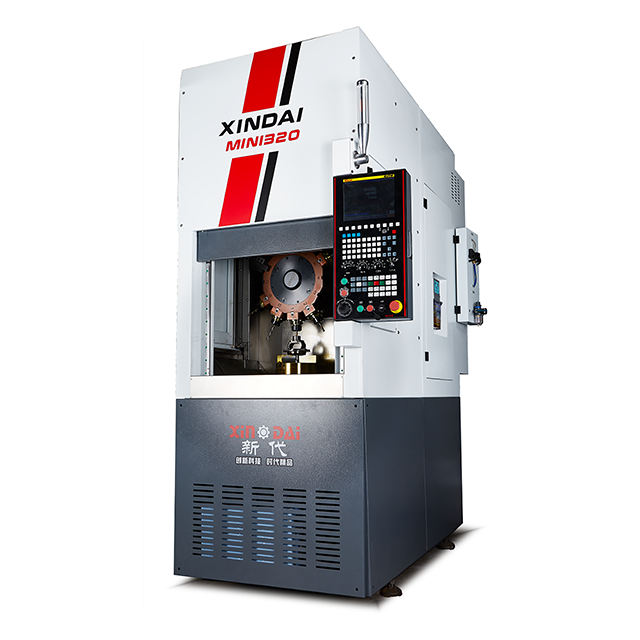

The machine tool adopts vertical rigidity excellent overall cast iron bed, equipped with high performance twelve-position power turret, suitable for disc parts vertical turning and milling composite machining, with excellent reliability and accuracy retention.
Spindle with high precision and high rigidity can achieve stepless speed regulation and constant speed cutting, and start quickly.
X/Z axis adopts servo motor and ball screw directly connected, high feeding precision, can get higher machining precision.
Roller guide, ball screw vice centralised automatic oil lubrication, each node is equipped with quantitative oil dispenser, timed quantitative injection of oil into the lubrication parts to ensure uniform lubrication of the sliding surfaces, effectively reduce friction resistance, improve the precision of the movement, to ensure that the service life of the ball screw vice and guide.
The machine tool is fully enclosed protection, to avoid the leakage of coolant. Appearance adopts industrial modelling design, beautiful and generous, can be united with industrial robots for cellular automated production line supporting, to achieve unmanned automatic production.
The machine tool is equipped with automatic chip conveyor, which is smooth in chip removal, convenient in loading and unloading, and easy to operate.
Applicable to the automotive industry, sweeping robots and other disc parts processing.
The machine tool adopts vertical rigidity excellent overall cast iron bed, equipped with high performance twelve-position power turret, suitable for disc parts vertical turning and milling composite machining, with excellent reliability and accuracy retention.
Spindle with high precision and high rigidity can achieve stepless speed regulation and constant speed cutting, and start quickly.
X/Z axis adopts servo motor and ball screw directly connected, high feeding precision, can get higher machining precision.
Roller guide, ball screw vice centralised automatic oil lubrication, each node is equipped with quantitative oil dispenser, timed quantitative injection of oil into the lubrication parts to ensure uniform lubrication of the sliding surfaces, effectively reduce friction resistance, improve the precision of the movement, to ensure that the service life of the ball screw vice and guide.
The machine tool is fully enclosed protection, to avoid the leakage of coolant. Appearance adopts industrial modelling design, beautiful and generous, can be united with industrial robots for cellular automated production line supporting, to achieve unmanned automatic production.
The machine tool is equipped with automatic chip conveyor, which is smooth in chip removal, convenient in loading and unloading, and easy to operate.
Applicable to the automotive industry, sweeping robots and other disc parts processing.
| Item | Component and model type | MINI320 |
| Processing range | Max X-axis travel(mm) | 600mm |
| Max Y-axis travel(mm) | / | |
| Max Z-axis travel(mm) | 300mm | |
| Max turning diameter(mm) | 320mm | |
| Max turning diameter of cutting table(mm) | / | |
| movement speed | X-axis G00 speed | 24m/min |
| Y-axis G00 speed | / | |
| Z-axis G00 speed | 24m/min | |
| Spindle | Model type(standard timing belt) | A2-6 |
| Spindle through-hole diameter | 62mm | |
| Spindle max speed(r/min) | 3000r/min | |
| Toolpost | Turret form | power turret |
| Tool holder type | Dovetail groove row tool 25*25 Boring 32 | |
| Lathe weight | Machine net weight | ≈3000KG |
| Lathe size | Length * width * height(mm) | 920*3400*250mm |
| Other | Optional configuration | Chip conveyor,articulated robot |
| Socpe of application | Turning, drilling, taooing, milling(Large cap category) |
| Item | Component and model type | MINI320 |
| Processing range | Max X-axis travel(mm) | 600mm |
| Max Y-axis travel(mm) | / | |
| Max Z-axis travel(mm) | 300mm | |
| Max turning diameter(mm) | 320mm | |
| Max turning diameter of cutting table(mm) | / | |
| movement speed | X-axis G00 speed | 24m/min |
| Y-axis G00 speed | / | |
| Z-axis G00 speed | 24m/min | |
| Spindle | Model type(standard timing belt) | A2-6 |
| Spindle through-hole diameter | 62mm | |
| Spindle max speed(r/min) | 3000r/min | |
| Toolpost | Turret form | power turret |
| Tool holder type | Dovetail groove row tool 25*25 Boring 32 | |
| Lathe weight | Machine net weight | ≈3000KG |
| Lathe size | Length * width * height(mm) | 920*3400*250mm |
| Other | Optional configuration | Chip conveyor,articulated robot |
| Socpe of application | Turning, drilling, taooing, milling(Large cap category) |
