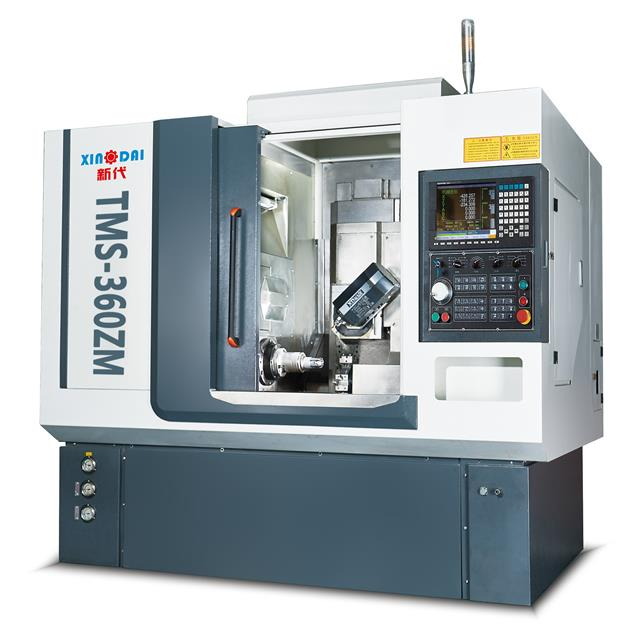

| Item | Component Name And Unit | TMS-360ZM |
| Processing Range | Max X-axis travel(mm) | 250 |
| Max Y-axis travel(mm) | 400 | |
| Max Z-axis travel(mm) | 360 | |
| Max travel of swivel head horizontal through center(mm) | 90 | |
| Max travel of swivel head vertical through center(mm) | 80 | |
| Max turning diameter(mm) | 250 | |
| Maximum turning diameter（mm) | 220 | |
| Movement Speed | X-axis G00 speed | 18 |
| Y-axis G00 speed | 18 | |
| Z-axis G00 speed | 18 | |

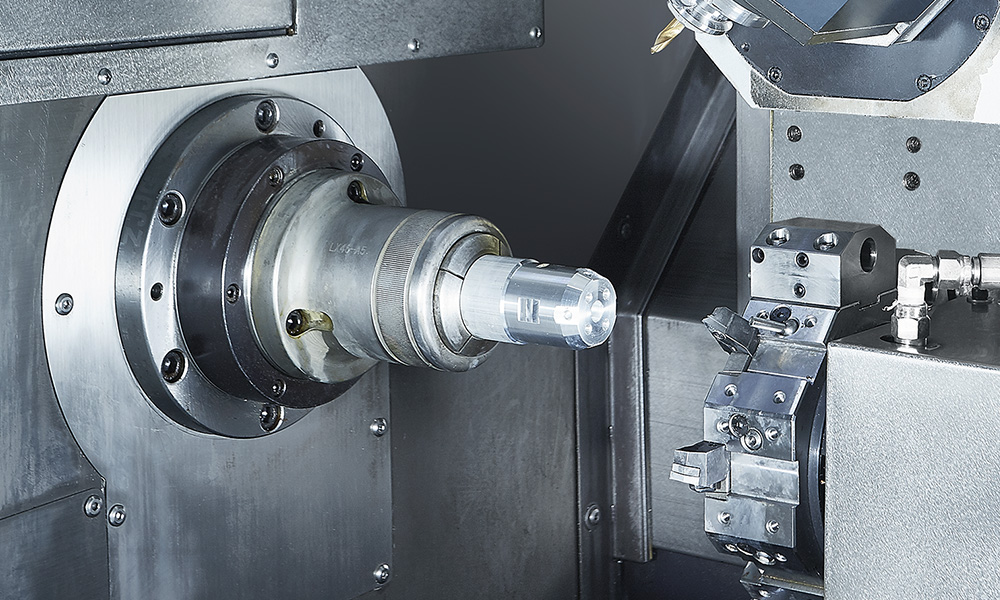

| Spindle | Model type | A2-5 |
| Spindle through-hole diameter(mm) | 56 | |
| Spindle max speed(r/min) | 4000 | |
| Max bar diameter(mm) | 45 | |

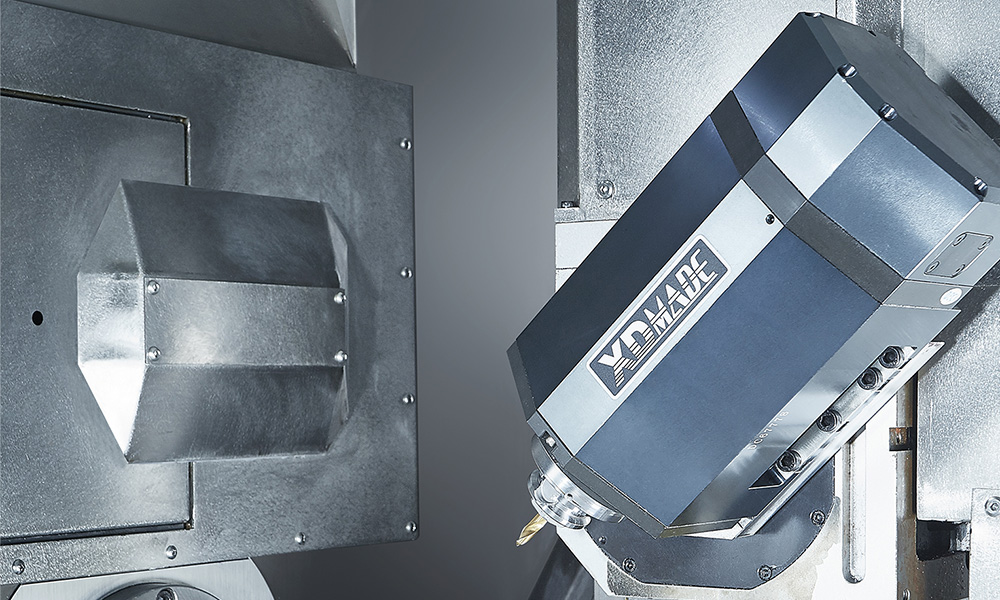

| Swivel Head | Swivel head collet chuck type | BT30 |
| Max speed of swivel head(r/min) | 24000 | |
| Angle range of swivel head swings | 0-120 degrees | |
| Capacity of swivel head tool magazine（pic) | 10 | |
| Toolpost | Turret form | Turret |
| Tool holder type | Tueert 20*20 boring 25 | |
| Lathe Weight | Machine net weight | 3.85T |
| Lathe Size | Length * width * height(mm) | 2250*1800*2300 |
