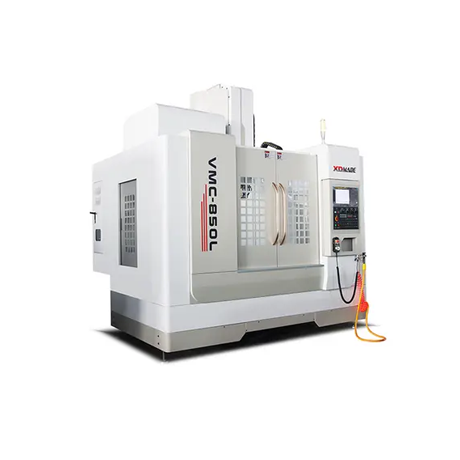

Imported tool magazine, fast tool change function
Fast and stable operation, maintain high precision machining lasting.
Precision and high rigidity: high-speed mobile cutting without vibration, no deformation, machining accuracy is guaranteed.
High processing efficiency: a clamping can be continuously completed after milling, drilling, boring, expanding, reaming, countersinking, tapping and other processes.
High stability: the whole machine structure for the cross slide fixed column structure, the use of large solid base, large span of high rigidity of the herringbone column, high-speed cutting does not vibrate, do not change shape.
Suitable for batch processing, wide range of applications, high quality after-sales service, one-year warranty service.
High life: silk rod with pre-drawn structure, eliminating part of the thermal extension, silk rod bearings are lubricated with oil injection, prolonging bearing life.
Imported tool magazine, fast tool change function
Fast and stable operation, maintain high precision machining lasting.
Precision and high rigidity: high-speed mobile cutting without vibration, no deformation, machining accuracy is guaranteed.
High processing efficiency: a clamping can be continuously completed after milling, drilling, boring, expanding, reaming, countersinking, tapping and other processes.
High stability: the whole machine structure for the cross slide fixed column structure, the use of large solid base, large span of high rigidity of the herringbone column, high-speed cutting does not vibrate, do not change shape.
Suitable for batch processing, wide range of applications, high quality after-sales service, one-year warranty service.
High life: silk rod with pre-drawn structure, eliminating part of the thermal extension, silk rod bearings are lubricated with oil injection, prolonging bearing life.
| Item | Name | VMC850 |
| Processing range | X/Y/Z-axis travel (mm) | 800*500*550 |
| Table size (mm) | 1000*500 | |
| Table load (KG) | 600 | |
| Distance from spindle nose to worktable surface(mm) | 140-690 | |
| Distance from spindle center to column guide rail (mm) | 570 | |
| T-slot (Number of slots - slot width × pitch) (mm) | 18T*5*100 | |
| Spindle | Spindle motor Power (Kw) | 11 |
| Spindle speed (r/min) | 10000 | |
| Spindle diameter (mm) | 150 | |
| Spindle taper | BT40 | |
| Feed | X/Y/Z axis feed motor Power (Kw) | 3.0/3.0/3.9 |
| X/Y/Z axis guide (mm) | 35/45/45 | |
| X/Y/Z axis screw (mm) | Φ40*10 | |
| X/Y/Z rapid feed speed (m/min) | 36/36/36 | |
| Tool magazine | Tool magazine Capacity (pic) | 24 |
| Maximum tool weight (KG) | 7 | |
| Maximum tool length (mm) | 250 | |
| Primary accuracy | Positioning accuracy (mm) | ±0.005 |
| Repeated positioning accuracy (mm) | ±0.003 | |
| Other | Operating system | Mitsubishi, Fanuc, SYNTEC |
| Power Capacity (KVA) | 20 | |
| Air Source (MPa) | 0.5-0.8 | |
| Machine weight (KG) | 6000 | |
| Floor area (length × width × height) (mm) | 2440×1970×2440 |
