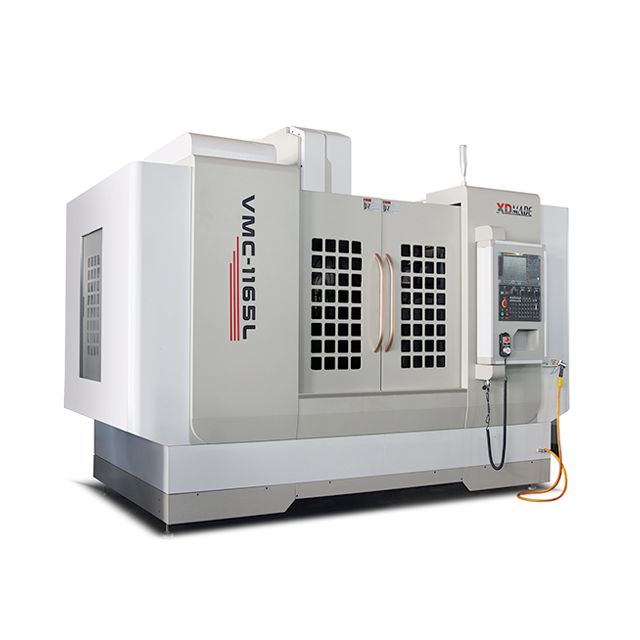

Adopting an ultra-large stable base and a large-span, high-rigidity herringbone column, the Machining Center-VMC1165 delivers exceptional stability. The cross slide fixed column design optimizes force distribution, reducing accuracy errors caused by thermal expansion and extending the machine’s service life.
Equipped with a spindle motor power of 11-15 Kw, the Machining Center-VMC1165 supports a spindle speed of 8000 r/min (up to 12000 r/min for direct connection models). The spindle features a diameter of 150 mm and BT40 taper, ensuring secure tool clamping and efficient power transmission for heavy-duty cutting tasks.
The X/Y/Z axes are driven by feed motors with power ratings of 3.9 Kw, 3.9 Kw, and 5.9 Kw respectively, paired with guide rails of 35 mm, 45 mm, and 45 mm (X/Y/Z) and screws of Φ40×16 mm. This setup enables rapid feed speeds of 36 m/min for all axes, enhancing processing efficiency while maintaining precision.
The integrated 24-station mechanical arm tool magazine offers high tool change efficiency, reducing non-processing time significantly. It can accommodate tools with a maximum weight of 10 KG and length of 350 mm, supporting complex machining processes that require frequent tool switches.
With one-time clamping, the Machining Center-VMC1165 continuously performs milling, drilling, boring, reaming, countersinking, and tapping operations. For more complex tasks, it can be equipped with a fourth-axis rotary table to achieve multi-axis linkage machining, expanding its application scope.
The machine boasts a positioning accuracy of ±0.005 mm and repeated positioning accuracy of ±0.003 mm, meeting the strict precision requirements of high-end manufacturing industries such as aerospace and automotive.
The sheet metal structure adopts a fully enclosed design to prevent cutting fluid leakage, keeping the work area clean. A water spray device at the chip outlet effectively solves chip accumulation issues, reducing manual cleaning efforts.
Screws use a pre-drawn structure to minimize the impact of thermal stretching, while screw bearings adopt oil-filled lubrication. These designs extend bearing life, improve overall operating efficiency, and lower long-term maintenance costs.
The Machining Center-VMC1165’s high precision (positioning accuracy ±0.005 mm) and stability make it ideal for machining aerospace components, such as turbine blades and structural parts, where even minimal deviations can affect performance and safety.
For mass-produced automotive parts (e.g., engine blocks, transmission components), the machine’s fast tool change speed, multi-process integration, and 36 m/min rapid feed rate reduce production cycles, ensuring consistent quality across large batches.
In general machinery manufacturing, the Machining Center-VMC1165 handles complex parts like gearboxes and hydraulic components. Its 800 KG table load and 1100×600×650 mm axis travel accommodate large workpieces, while the 24-station tool magazine supports diverse processing needs.
For small, high-precision electronics parts (e.g., connectors, sensor housings), the machine’s repeated positioning accuracy of ±0.003 mm ensures tight tolerances are met, making it a reliable choice for electronics manufacturers.
Whether for high-volume mass production or small-batch custom machining, the Machining Center-VMC1165 adapts to different production demands. Its compatibility with Mitsubishi, Fanuc, and SYNTEC operating systems allows seamless integration into existing production lines, reducing setup time for manufacturers.
The machine’s 24-station mechanical arm tool magazine enables fast tool changes, while the 36 m/min rapid feed rate and multi-process integration (one clamping for milling, drilling, etc.) minimize non-processing time. Its stable structure and high-quality components also ensure consistent performance across long production runs, reducing downtime.
The Machining Center-VMC1165 has a table size of 1200×600 mm and X/Y/Z-axis travel of 1100×600×650 mm, supporting workpieces within these dimensions. The table load capacity of 800 KG further allows processing of heavy workpieces.
The Machining Center-VMC1165 achieves a positioning accuracy of ±0.005 mm and repeated positioning accuracy of ±0.003 mm, ensuring high-precision machining for demanding applications.
Yes. The machine can be equipped with a fourth-axis rotary table to realize multi-axis linkage machining, enabling complex operations on irregularly shaped workpieces. It also supports simultaneous machining of multiple features, improving efficiency.
The Machining Center-VMC1165 is compatible with three leading operating systems: Mitsubishi, Fanuc, and SYNTEC. This flexibility allows manufacturers to choose the system that best fits their workflow and operator familiarity.
Xindai CNC offers a one-year warranty for the Machining Center-VMC1165, covering defects in materials and workmanship. Customers can also access technical support via email (dyxd1009@163.com), telephone (+86-134-2066-3219), or landline (+86-757-2610-6302 / +86-757-2837-9678) for troubleshooting and maintenance guidance.
The machine’s pre-drawn screw structure mitigates thermal expansion effects, and oil-filled lubrication for screw bearings extends component life. The fully enclosed sheet metal design and chip outlet water spray device also reduce cleaning and maintenance efforts, lowering long-term operational costs.
