XD-2SDY-46V
XDMADE

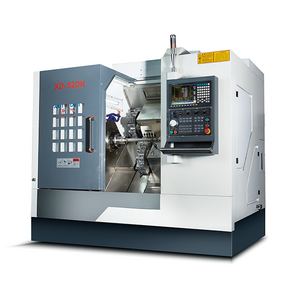

The XD-2SDY-46V is a high-precision dual spindle dual turret CNC lathe equipped with a Taiwan Syntec 210TB-E bus absolute control system, supporting dual Y-axis synchronized machining. Featuring a staggered dual spindle design and HIWIN/PMI high-precision linear guides and screws, it achieves repeat positioning accuracy of ±0.002mm. The dual spindles (A2-5 and A2-4 motorized spindles) reach a maximum speed of 4000rpm with a bar capacity of Φ45, ideal for efficient complex part machining. The turret includes 2 internal hole tool holders and 4 gang tool holders, with optional gear-driven power heads (ER25 specification). Built with a robust Guangdong cast integrated bed, the machine weighs approximately 4 tons and measures 2.3X2X2.2 meters, making it perfect for precision machining applications.
Dual Spindle Synchronization: A2-5 (Φ45 bore) and A2-4 (Φ35 bore) motorized spindles (4000rpm) for continuous bar processing.
Dual Turret System: 2 internal tool holders + 4 gang tool holders, optional ER25 gear-driven power head for multi-tasking.
Precision Motion: HIWIN/PMI C3-grade ball screws and P-class linear guides for long-term accuracy.
Smart Control: Syntec 210TB-E bus system supports multi-axis coordination and automation (robot interface optional).
Ideal for automotive parts, aerospace components, medical devices, and electronic connectors requiring batch precision machining.
