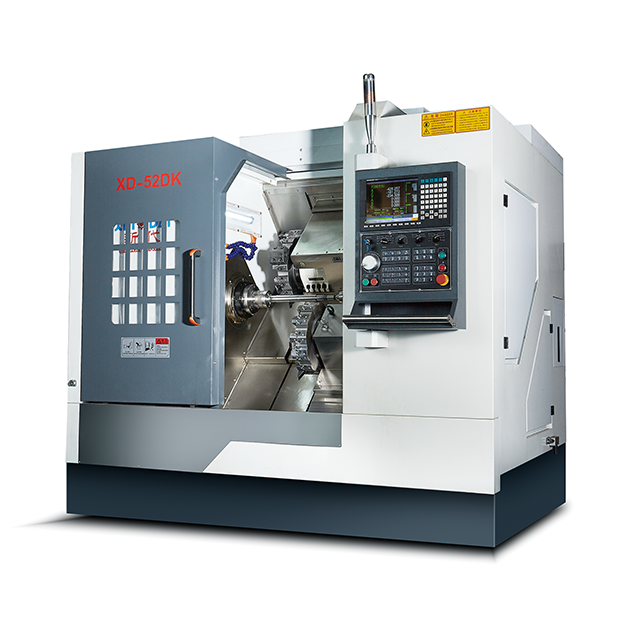

The use of dual servo turret design (can be staggered feed, step feed, simultaneous feed) features, greatly improving tool life, machining speed increased significantly.
Double turret with hydraulic tail top design, it is easier to ensure the roundness and concentricity for machining long and thin shaft parts.
The main drive system of the machine tool adopts AC servo motor drive, with high-efficiency synchronous belt direct drive spindle. Avoid the noise problem caused by the gearbox transmission chain.
X / Z-axis using high-power servo motors and ball screws directly connected to the feed torque is strong, high machining accuracy.
Equipped with high-performance servo turret with large tool disc, it has good reliability and repeatable positioning accuracy while realising fast tool change.
Hydraulic chuck and tailstock sleeve expansion and contraction can be controlled by programme and foot switch.

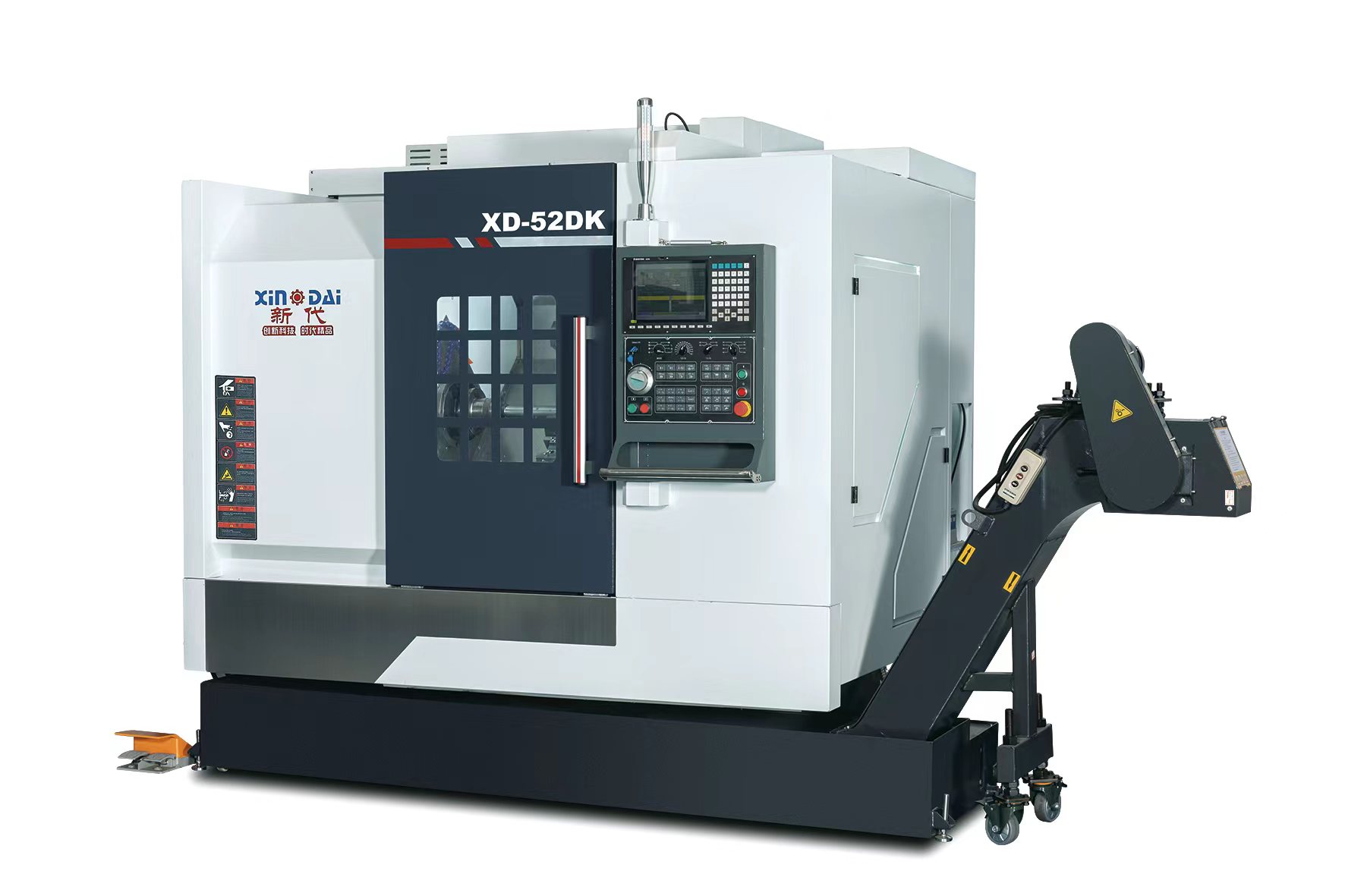

Machine tool is fully closed protection, supporting embedded chip conveyor and water tank, avoiding the leakage of coolant, smooth chip removal, convenient loading and unloading, easy to operate.
It is suitable for long shaft processing in automobile parts, transmission industry, wind power generation and other industries.
The use of dual servo turret design (can be staggered feed, step feed, simultaneous feed) features, greatly improving tool life, machining speed increased significantly.
Double turret with hydraulic tail top design, it is easier to ensure the roundness and concentricity for machining long and thin shaft parts.
The main drive system of the machine tool adopts AC servo motor drive, with high-efficiency synchronous belt direct drive spindle. Avoid the noise problem caused by the gearbox transmission chain.
X / Z-axis using high-power servo motors and ball screws directly connected to the feed torque is strong, high machining accuracy.
Equipped with high-performance servo turret with large tool disc, it has good reliability and repeatable positioning accuracy while realising fast tool change.
Hydraulic chuck and tailstock sleeve expansion and contraction can be controlled by programme and foot switch.
Machine tool is fully closed protection, supporting embedded chip conveyor and water tank, avoiding the leakage of coolant, smooth chip removal, convenient loading and unloading, easy to operate.
It is suitable for long shaft processing in automobile parts, transmission industry, wind power generation and other industries.
| Item | Component name and unit | XD-52DK |
| Processing range | Max turning diameter(mm) | Φ450 |
| Max cutting length(mm) | 390 | |
| Max cutting diameter(mm) | Φ300 | |
| bar diameter(mm) | Φ52 | |
| Travel | X-axis effective travel | 340 |
| Z-axis effective travel | 430 | |
| Fast movement speed(m/min) | 18 | |
| Spindle | Spindle nose | A2-6 |
| Max speed(r/min) | 4000 | |
| Spindle through-hole diameter(mm) | Φ65 | |
| Spindle transmission form | Belt | |
| First spindle servo turret | Turret form | Servo turret 380 |
| Tool holder specification(mm) | 12 station/25 | |
| Boring tool holder(mm) | 12 station/32 | |
| Second spindle servo turret | Turret form | Servo turret 380 |
| Tool holder specification(mm) | 12 bits /25 | |
| Boring tool holder(mm) | 12 bits /25 | |
| Dual-spindle linkage machining accuracy | Repeat positioning accuracy(mm) | ±0.002 |
| Toolpost | Tool holder specification(mm) | 20*20 |
| Boring tool holder(mm) | Φ20 | |
| Lathe weight | Machine net weight(T) | ≈4T |
| Lathe size | Length * width * height(mm) | 3500*1900*2100 |
| Other | Optional configuration | Chip conveyor,truss manipulator,feeder |
| Socpe of application | Various slender shafts processing |
