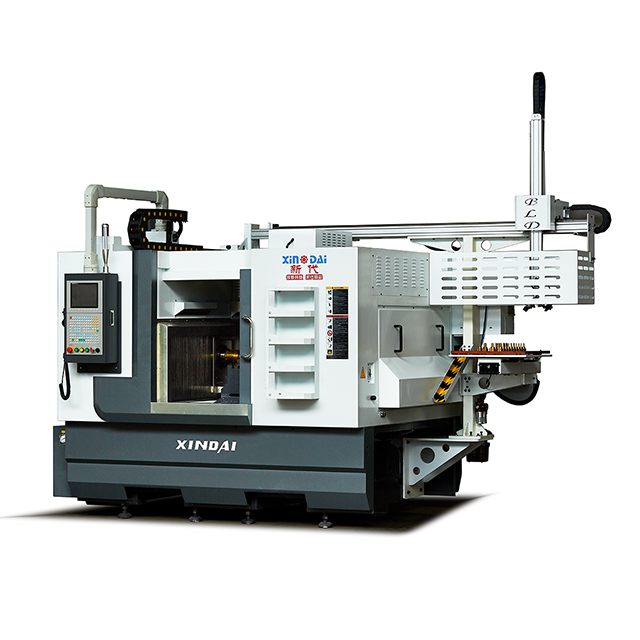

1. This is a high-speed and high-precision turning center, the machine tool is equipped with double electric spindle, double twelve station servo power tower, high rigidity roller linear guide, with double Y axis and double C axis function, with the main and auxiliary spindle docking can complete the workpiece bidirectional clamping, to achieve the workpiece front and back processing. It is especially suitable for turning milling when parts are clamped at one time to complete all or most of the processes.
2. Spindle box and auxiliary spindle box adopt electric spindle structure, high speed, good rigidity, fast dynamic response, effectively improve the processing accuracy of products. The double motorized spindle structure can be used for workpiece docking under the condition of high-speed rotation, which greatly saves the clamping
3. The tool holder adopts the integrated BMT 12-station servo power tool tower, which has good rigidity, fast tool change speed and high precision.
1. This is a high-speed and high-precision turning center, the machine tool is equipped with double electric spindle, double twelve station servo power tower, high rigidity roller linear guide, with double Y axis and double C axis function, with the main and auxiliary spindle docking can complete the workpiece bidirectional clamping, to achieve the workpiece front and back processing. It is especially suitable for turning milling when parts are clamped at one time to complete all or most of the processes.
2. Spindle box and auxiliary spindle box adopt electric spindle structure, high speed, good rigidity, fast dynamic response, effectively improve the processing accuracy of products. The double motorized spindle structure can be used for workpiece docking under the condition of high-speed rotation, which greatly saves the clamping
3. The tool holder adopts the integrated BMT 12-station servo power tool tower, which has good rigidity, fast tool change speed and high precision.
| Item | Misalignment docking dual-spindle XD-2SD46 | XD-2SDY-46V |
| First spindle processing range | Max turning diameter(mm) | Φ320 |
| Max cutting length(mm) | 250 | |
| Max cutting diameter(mm) | Φ300 | |
| Spindle bar diameter(mm) | Φ45 | |
| Secong spindle processing range | Max turning diameter(mm) | Φ320 |
| Max cutting length(mm) | 250 | |
| Max cutting diameter(mm) | Φ150 | |
| Spindle bar diameter(mm) | Φ35 | |
| First spindle travel | X-axis effective travel(mm) | 195 |
| Z-axis effective travel(mm) | 345 | |
| Y-axis effective travel(mm) | ±50 | |
| Fast movement speed(m/min) | 18 | |
| Second spindle travel | X-axis effective travel(mm) | 225 |
| Z-axis effective travel(mm) | 295 | |
| Y-axis effective travel(mm) | ±50 | |
| Fast movement speed(m/min) | 18 | |
| First spindle | Spindle nose | A2-5 |
| Max speed(r/min) | 4000 | |
| Spindle through-hole diameter(mm) | Φ56 | |
| Spindle transmission form | Belt | |
| Second spindle | Spindle nose | A2-4 |
| Max speed(r/min) | 4000 | |
| Spindle through-hole diameter(mm) | Φ56 | |
| Spindle transmission form | belt | |
| First spindle power head | Power head transmission form | Gears |
| Collet chucks specification(mm) | / | |
| Max speed of collet chucks | 4000 | |
| Second spindle power head | Power head transmission form | Gears |
| Collet chucks specification | ER25 | |
| Max speed of collet chucks(m/min) | 4000 | |
| Dual-spindle linkage machining accuracy | Repeat positioning accuracy(mm) | ±0.004 |
| Tool carrier | Tool holder specification(mm) | 20*20 |
| Boring tool holder specification(mm) | Φ20 | |
| Lathe weight | Machine net weight(KG) | ≈4000 |
| Lathe siza | Length * width * height(mm) | 2300*2000*2200 |
