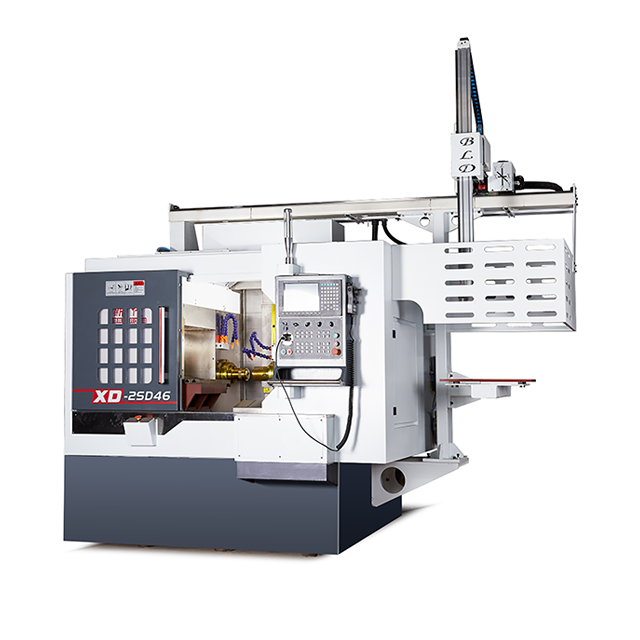

The Dual Spindle Docking Truss Manipulator is a high-performance, automated machining solution developed by Xindai CNC, a leading China-based manufacturer specializing in CNC lathes and automation equipment. This equipment is not just a standard lathe but a fully integrated high-speed and high-precision turning center, designed to eliminate inefficiencies in traditional single-spindle machining and reduce errors caused by repeated workpiece clamping.
At its core, the Dual Spindle Docking Truss Manipulator features dual motorized spindles, a BMT 12-station servo power turret, and high-rigidity roller linear guides—all combined with dual Y-axis and dual C-axis functionality. The main and sub-spindles support seamless docking, allowing bidirectional clamping of workpieces to complete both front and back processing in one setup. This design is particularly valuable for complex parts that require multiple machining steps (e.g., turning, milling, drilling) and demand strict precision, as it minimizes human intervention and ensures consistent quality across high-volume production runs.
With a focus on versatility and reliability, this manipulator caters to industries requiring precision components, balancing speed, accuracy, and durability. Key specifications—such as a maximum turning diameter of Φ320 mm, spindle speed of 4000 r/min, and repeat positioning accuracy of ±0.004 mm—position it as a competitive choice for businesses seeking to upgrade their machining capabilities.
The Dual Spindle Docking Truss Manipulator’s dual motorized spindles are the cornerstone of its performance, designed to deliver both speed and stability for continuous machining.
Spindle Structure & Performance: Both the main and sub-spindle boxes adopt an electric spindle design, which offers faster dynamic response compared to traditional belt-driven spindles and reduces vibration during high-speed operation. This structure directly enhances machining accuracy, especially for thin-walled or delicate workpieces.
Key Specifications: The first spindle supports a maximum turning diameter of Φ320 mm, a maximum cutting length of 250 mm, and a bar stock diameter of Φ45 mm; the second spindle matches the first in maximum turning diameter (Φ320 mm) and cutting length (250 mm) while accommodating a bar stock diameter of Φ35 mm. Both spindles reach a maximum speed of 4000 r/min and use belt transmission for smooth power delivery, with a spindle through-hole diameter of Φ56 mm to handle various material sizes.
Docking Functionality: A unique advantage is the spindles’ ability to dock while rotating at high speed. This feature eliminates the need to stop machining for workpiece transfer, drastically reducing cycle time and improving overall production efficiency—critical for high-volume manufacturing.
The tooling system of the Dual Spindle Docking Truss Manipulator uses an integrated BMT 12-station servo power turret, a design optimized for speed, rigidity, and precision.
Structural Advantages: The BMT (Built-in Motor Turret) design integrates the motor directly into the turret, reducing power loss and improving torque transmission. This ensures the turret maintains high rigidity during heavy cutting, preventing tool deflection and extending tool life.
Tool Compatibility: The turret supports standard tool holders of 20*20 mm and boring tool holders of Φ20 mm, making it compatible with a wide range of cutting tools for diverse machining needs, from simple turning to complex milling operations.
The Dual Spindle Docking Truss Manipulator is equipped with dual Y-axis and dual C-axis functionality, enabling multi-axis linkage for complex 5-sided or 5-axis machining tasks.
Axis Travel & Speed: The first spindle offers an X-axis effective travel of 195 mm, Z-axis effective travel of 345 mm, and Y-axis effective travel of ±50 mm; the second spindle provides an X-axis effective travel of 225 mm, Z-axis effective travel of 295 mm, and the same Y-axis travel of ±50 mm. Both spindles support a fast movement speed of 18 m/min for rapid positioning between machining steps.
Precision Guarantee: The dual C-axis (rotary axis) allows the spindles to rotate the workpiece at precise angles, enabling milling of slots, holes, or contours at any orientation. Combined with the dual Y-axis (radial movement), this configuration supports complex operations such as off-center drilling and curved surface machining—all while maintaining a repeat positioning accuracy of ±0.004 mm, a critical metric for high-precision parts.
Durability and space efficiency are key considerations in the Dual Spindle Docking Truss Manipulator’s design, making it suitable for various workshop layouts.
High-Rigidity Base & Guides: The machine uses high-rigidity roller linear guides for all axes, which offer higher load-bearing capacity and lower friction compared to ball screws. This design reduces wear over time and ensures stable machining even during heavy cutting.
Compact Footprint: Despite its robust performance, the machine has a compact size of 230020002200 mm (lengthwidthheight), making it easy to integrate into existing production lines without requiring excessive floor space. The net weight of ≈4000 KG ensures stability during high-speed operation, preventing machine vibration that could affect machining accuracy.
The Dual Spindle Docking Truss Manipulator is tailored to meet the precision and efficiency needs of multiple high-demand industries, where consistent quality and fast production cycles are critical.
Automotive Parts Manufacturing: In the automotive industry, this manipulator is ideal for processing core components such as engine crankshafts, gear blanks, brake caliper pins, and transmission shafts. These parts require tight tolerances (often ±0.005 mm or higher) and high-volume production—needs that the dual-spindle design addresses by eliminating secondary clamping and reducing cycle time. For example, it can complete turning, milling, and drilling of a gear blank in one setup, cutting production time by up to 30% compared to single-spindle lathes.
Aerospace & Defense: The aerospace sector demands ultra-precise components (e.g., aircraft engine parts, hydraulic fittings, and sensor housings) made from high-strength materials like titanium or stainless steel. The Dual Spindle Docking Truss Manipulator’s high rigidity and repeat positioning accuracy (±0.004 mm) ensure it can machine these materials without compromising precision, even during long production runs.
Electronics & Medical Equipment: For small, delicate parts such as electronic connector pins, sensor housings, and medical device components (e.g., surgical instrument shafts), the manipulator’s dual-spindle docking and gentle clamping prevent workpiece deformation. Its ability to handle small bar stock (down to Φ35 mm for the second spindle) makes it suitable for these miniaturized parts.
Hydraulic & Pneumatic Components: Manufacturers of hydraulic valves, pneumatic cylinders, and fluid connectors rely on the manipulator’s ability to machine complex internal and external features (e.g., threaded ports, sealing grooves) in one setup. The BMT 12-station turret supports specialized tools for these tasks, ensuring consistent quality across batches.
Beyond industry applications, the Dual Spindle Docking Truss Manipulator excels in specific workpiece scenarios that require efficiency and precision:
One-Clamp Complete Processing: For workpieces that need both front and back machining (e.g., double-ended shafts, cylindrical parts with holes on both ends), the dual-spindle docking function allows bidirectional clamping. This means the main spindle processes the front of the workpiece, then docks with the sub-spindle to transfer it for back-side processing—all without removing the workpiece from the machine. This eliminates clamping errors and reduces handling time.
Complex Turn-Mill Composite Tasks: Parts requiring both turning and milling operations (e.g., shafts with keyways, flanged parts with drilled holes) benefit from the manipulator’s dual Y-axis and dual C-axis. For example, it can turn the outer diameter of a shaft, then use the Y-axis to mill a keyway and the C-axis to drill a radial hole—all in one setup, avoiding the need to transfer the part to a separate milling machine.
High-Volume Precision Production: For businesses producing 1,000+ units of a part per day (e.g., automotive fasteners, electronic pins), the manipulator’s high-speed spindles (4000 r/min) and fast tool changes reduce cycle time per part. Its automated design also minimizes human error, ensuring consistent quality even during long shifts.
Unlike standard dual-spindle lathes that often require stopping rotation for workpiece transfer, the Dual Spindle Docking Truss Manipulator supports high-speed docking (while spindles rotate at up to 4000 r/min). This is made possible by its precise dual-axis linkage control system and high-rigidity roller linear guides, which maintain alignment between the main and sub-spindles. The result is faster cycle times and no loss of precision during transfer—critical for high-volume production.
Yes, the manipulator is equipped with dual Y-axis (±50 mm effective travel) for both the main and sub-spindles. The Y-axis enables radial movement of the tool, which is essential for complex operations like off-center drilling, milling of slots or grooves, and machining of asymmetric features. For example, when processing a shaft with a radial hole, the Y-axis positions the drill precisely at the desired distance from the shaft’s center, eliminating the need for custom jigs or secondary operations.
The manipulator offers a repeat positioning accuracy of ±0.004 mm, a metric that measures how consistently the machine can return to a specific position after multiple cycles. This level of precision is critical for industries like aerospace and medical device manufacturing, where even tiny deviations (e.g., 0.01 mm) can render parts non-functional. The accuracy is achieved through high-precision servo motors, rigid linear guides, and advanced CNC control software that compensates for thermal expansion and mechanical wear.
Operating the manipulator requires basic knowledge of CNC programming (e.g., G-code, M-code) and familiarity with Xindai CNC’s proprietary control system. Xindai CNC provides comprehensive training for operators, including hands-on sessions on machine setup, tool calibration, spindle docking, and troubleshooting. For businesses with existing CNC operators, the training typically takes 3–5 days; for new operators, it may extend to 1–2 weeks to ensure proficiency.
Routine maintenance is essential to preserve the machine’s precision and lifespan. Key tasks include:
Lubrication: Regularly lubricate the roller linear guides and spindle bearings (recommended every 8 hours of operation) using the specified lubricating oil to reduce friction and wear.
Tool Turret Inspection: Check the BMT 12-station turret for tool holder tightness and alignment monthly, as loose tools can cause machining errors.
Spindle Maintenance: Clean the spindle through-hole weekly to remove debris, and inspect the belt drive system quarterly for wear or tension issues.
Software Updates: Xindai CNC releases periodic software updates to improve performance and add features—operators should install these updates as recommended.
Yes, the manipulator is designed for seamless integration with factory automation (FA) systems, such as MES (Manufacturing Execution Systems) or robotic loading/unloading systems. It supports standard communication protocols (e.g., Modbus, Ethernet/IP) that allow real-time data exchange—including production counts, machining parameters, and error alerts—with central control systems. This enables businesses to automate material handling, track production in real time, and optimize overall line efficiency.
Yes, Xindai CNC offers customization options to tailor the manipulator to unique requirements. Common customizations include:
Adjusting spindle specifications (e.g., higher speed spindles for aluminum machining, more powerful spindles for stainless steel).
Adding specialized tool holders (e.g., for Swiss-style turning or grinding).
Modifying the machine’s size or footprint to fit tight workshop spaces.
Integrating additional automation features (e.g., automatic parts catchers, coolant filtration systems). Customers can discuss their needs with Xindai CNC’s engineering team to develop a customized solution.
The standard delivery time for the Dual Spindle Docking Truss Manipulator is 8–12 weeks from the date of order confirmation. For customized models, delivery time may extend to 12–16 weeks, depending on the complexity of the modifications. Xindai CNC provides regular updates on production progress and coordinates with customers for shipping and on-site installation.
Xindai CNC provides comprehensive after-sales support to ensure optimal machine performance:
Warranty: A 12-month warranty covering mechanical and electrical components (excluding wear parts like tool holders or belts).
Technical Support: 24/7 online and phone support from Xindai CNC’s engineering team to resolve troubleshooting issues.
Spare Parts: A global spare parts inventory to ensure fast delivery of replacement components (typically 3–5 business days for standard parts).
On-Site Service: Optional on-site maintenance and repair services for customers who require hands-on assistance.
