Lathe machines have long been a crucial part of the manufacturing industry, providing versatile machining capabilities for shaping and cutting various materials. They are essential in producing cylindrical parts such as shafts, pulleys, and bushings. Traditionally, manual lathes were the go-to machinery for turning operations. However, with advancements in technology, CNC (Computer Numerical Control) lathes have revolutionized the industry, offering high precision, automation, and efficiency.
This article will delve into the key differences between CNC lathes and manual lathes, providing a detailed comparison to help manufacturers, hobbyists, and engineers decide which type of lathe suits their specific needs. We’ll explore everything from automation to precision, speed, and costs, making it clear when each machine type is most appropriate.

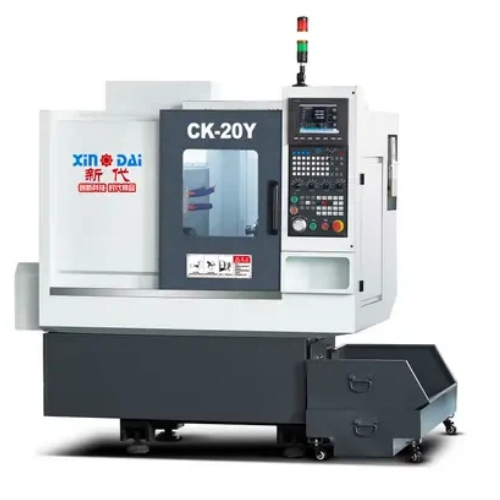

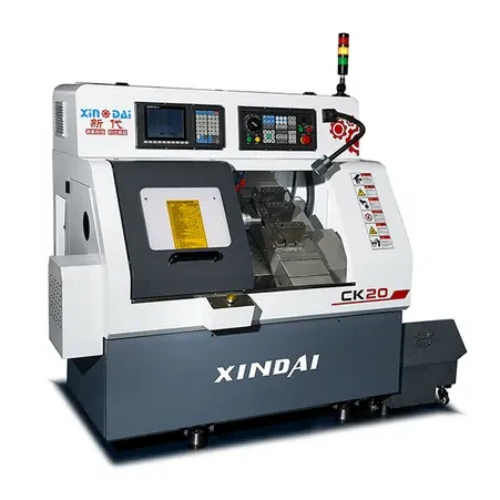

A CNC lathe is a modern machine tool operated by computer control systems. CNC stands for Computer Numerical Control, which refers to the process of automating machine tools via pre-programmed computer software. Unlike manual lathes, where an operator adjusts the machine settings and guides the cutting tools by hand, CNC lathes are controlled by coded instructions fed into a computer, which then directs the movements of the toolhead along predetermined paths.
The key advantage of CNC lathes lies in their ability to automate complex cutting and shaping operations, ensuring higher precision and repeatability. Once a CNC program (typically written in G-code) is created, it can be reused to produce identical parts without requiring further manual intervention.
Automated Control: CNC lathes use programming to control the machining process, allowing for precise and automated operations.
Precision and Accuracy: CNC lathes offer high precision, reducing human error and delivering uniform parts with tight tolerances.
Integration with CAD/CAM: CNC lathes can seamlessly integrate with Computer-Aided Design (CAD) and Computer-Aided Manufacturing (CAM) software, allowing for a smooth transition from digital design to physical manufacturing.
Multi-axis Machining: Many CNC lathes support multi-axis movement, making them capable of performing complex operations that would be nearly impossible with manual lathes.
Consistency: Once set up, a CNC lathe can produce thousands of identical parts without variations, making it ideal for mass production.
Speed: CNC lathes can operate continuously, significantly reducing cycle times.
Complexity: CNC lathes can handle intricate and complex designs that require multiple cutting operations.
A manual lathe is a traditional machine that requires direct human control during the machining process. The operator manually adjusts the tool positions, speeds, and feeds to shape the workpiece. While manual lathes have been a staple in manufacturing for centuries, they still hold value in specific industries where precision and automation are less critical.
Manual lathes are typically used for small-scale, low-volume production or for making custom parts. Unlike CNC lathes, manual lathes do not require complex programming, but they demand skilled operators who can ensure accuracy through manual control.
Manual Operation: The operator is responsible for moving the cutting tools and adjusting settings like speed, feed, and cutting depth.
Mechanical Control: Manual lathes rely on physical adjustments using levers, wheels, and dials.
Simplicity: These machines have relatively simple mechanics compared to their CNC counterparts, making them easier to maintain and repair.
Cost-Effective: Manual lathes generally have lower initial costs compared to CNC lathes.
Simplicity: There’s no need for programming, making it easy to start working on a project quickly.
Low Cost: Manual lathes are generally less expensive than CNC lathes, both in terms of initial investment and maintenance.
Flexibility: Manual lathes can handle a variety of tasks, including repairs, custom parts, and small production runs.
The differences between CNC lathes and manual lathes stem from their operation, precision, efficiency, and applications. Here is a detailed comparison of the two:
Aspect | CNC Lathe | Manual Lathe |
Automation | Fully automated with computer-controlled operation. | Manual operation with hands-on adjustments. |
Precision | High precision, minimal human error, consistent results. | Dependent on operator skill and experience. |
Complexity of Operations | Can handle complex geometries, 3D shapes, and intricate cuts. | Suited for simpler, more basic turning tasks. |
Speed | Faster production due to automation and continuous operation. | Slower production, requires operator adjustments. |
Skill Level | Requires knowledge of CNC programming and CAD/CAM software. | Requires skilled operator with mechanical knowledge. |
Maintenance | More complex, requires specialized knowledge for repairs. | Simple maintenance and easier to repair. |
Cost | Higher initial cost, but lower long-term labor costs. | Lower initial cost, higher labor costs. |
CNC Lathe: CNC lathes are entirely automated. Once programmed, the machine will carry out the operations without the need for human intervention, ensuring greater control over the cutting process. The operator only needs to monitor the machine, which greatly reduces human error.
Manual Lathe: Manual lathes require continuous adjustments and supervision by the operator. Every aspect of the operation, from setting the feed rates to positioning the tools, is done manually, which introduces more chances for human error.
CNC Lathe: Precision is one of the most significant advantages of CNC lathes. The automation and computer control allow for highly accurate and repeatable operations, with tolerances in the micrometer range.
Manual Lathe: While manual lathes can still produce accurate parts, the precision is often limited by the operator's experience and skills. There’s also a higher chance of inconsistency between parts.
CNC Lathe: CNC lathes excel in handling complex and intricate designs. With the ability to process multi-axis machining operations, these lathes can produce detailed shapes, threads, and cuts that would be challenging or impossible to achieve manually.
Manual Lathe: Manual lathes are better suited for simpler tasks. While they can handle a variety of shapes and materials, they lack the capability for complex 3D machining.
CNC Lathe: CNC lathes can operate continuously, running 24/7 if necessary. This leads to faster production times, especially for high-volume manufacturing where automation plays a critical role in efficiency.
Manual Lathe: Manual lathes are slower because every adjustment requires the operator’s direct attention. This makes manual lathes more time-consuming, especially for larger production runs.
CNC Lathe: Operators of CNC lathes must have knowledge of programming languages (like G-code), CAD/CAM software, and machine operation. Training is required to effectively program the CNC system and operate the machine.
Manual Lathe: While operating a manual lathe also requires skill and experience, it does not require the same level of technical knowledge as a CNC lathe. Manual lathes rely on mechanical adjustments and operator dexterity.
CNC Lathe: CNC lathes have higher upfront costs, including the cost of the machine itself and training for operators. However, they reduce long-term labor costs and improve production efficiency, which can result in cost savings over time.
Manual Lathe: Manual lathes are much cheaper to purchase and maintain. However, they require more human labor, which can increase operating costs over time.
CNC lathes are ideal for industries that require high precision and mass production. Some of the common applications include:
Aerospace: CNC lathes are used to manufacture parts for airplanes, such as turbine blades and engine components.
Automotive: Precision machining of engine components, gears, and shafts.
Medical Devices: Manufacturing components with tight tolerances, such as surgical instruments and implants.
Electronics: High-precision components for devices like smartphones and computers.
Manual lathes are often used in small workshops, repairs, or custom projects. Their applications include:
Prototype Development: Manual lathes are commonly used to create prototypes for new products.
Custom Parts: For one-off or small batch production, where CNC machines may not be cost-effective.
Tool and Die Making: Manual lathes are often used for repairing tools and making custom dies.
In conclusion, both CNC lathes and manual lathes offer distinct advantages, depending on the specific needs of the user. CNC lathes are highly automated, offering precise, high-volume production with minimal operator involvement. They are the ideal choice for industries that require speed, accuracy, and automation. On the other hand, manual lathes are cost-effective, easy to maintain, and better suited for smaller, less complex tasks where absolute precision is not critical.
The choice between CNC and manual lathes ultimately depends on your project’s complexity, production volume, and budget. For large-scale, high-precision manufacturing, CNC lathes are undoubtedly the better option. However, for custom, low-volume projects, manual lathes remain valuable tools in modern manufacturing.
At Daying Xindai Machinery Manufacturing Co., Ltd., we understand that selecting the right lathe is crucial to your manufacturing needs. Whether you’re looking for advanced CNC lathes or reliable manual lathes, our team is here to guide you in making the best choice for your specific applications. Feel free to reach out to us for expert advice and high-quality machinery that fits your production requirements.
What are the main advantages of using a CNC lathe over a manual lathe?
CNC lathes offer higher precision, faster production speeds, and the ability to automate complex operations, making them ideal for large-scale production and high-precision parts.
Can a manual lathe be converted to a CNC lathe?
Yes, some manual lathes can be retrofitted with CNC controls, allowing for enhanced automation and precision.
Which is more cost-effective, a CNC lathe or a manual lathe?
Manual lathes are typically less expensive to purchase, but CNC lathes may offer long-term cost savings due to reduced labor and higher production efficiency.
What industries benefit the most from using CNC lathes?
Industries such as aerospace, automotive, medical devices, and electronics benefit greatly from the high precision and speed that CNC lathes provide.
Is there any situation where a manual lathe is preferred over a CNC lathe?
Manual lathes are often preferred for low-volume, custom, or prototype work, especially when cost is a primary concern or when the complexity of the part is low.
