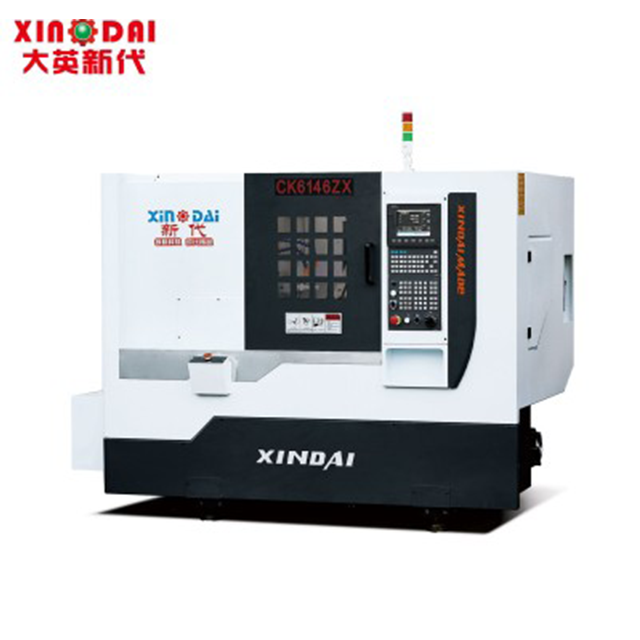

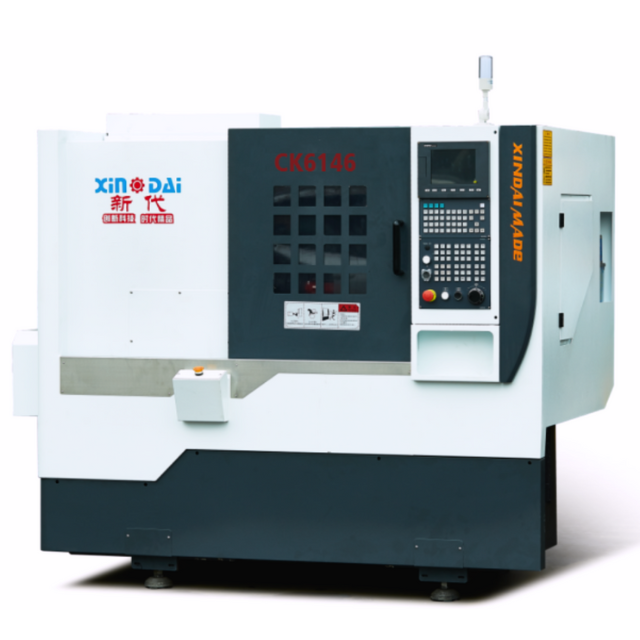

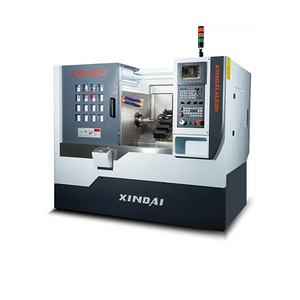

The machine tool adopts a horizontal high-rigidity integral cast iron bed. The bed adopts a small giant design structure. The guide rail is placed in a horizontal step-type, which is suitable for high-speed and high-strength cutting. It has excellent reliability and precision retention. The 35° inclined bed design is convenient for operators to get on and off the workpiece, and can also ensure smooth chip removal.
he spindle has high precision and strong rigidity, can achieve stepless speed regulation and constant speed cutting, and starts quickly.
The main transmission system of the machine tool is driven by an AC servo motor, and the spindle is directly driven by a high-efficiency synchronous belt. The noise problem caused by the gearbox transmission chain is avoided.
The X/Z axis adopts a servo motor and a ball screw directly connected, with high feed accuracy, which can obtain higher processing accuracy.
Each lubrication point can be quantitatively lubricated, temperature rise and thermal deformation.
The T-type tool holder reduces the tool change time, a variety of tool arrangement combinations, and improves production efficiency.
Fully protective internal protection effectively isolates important components from the processing area, with better oil, water and dustproof effects, and longer machine tool service life.
The machine tool adopts a horizontal high-rigidity integral cast iron bed. The bed adopts a small giant design structure. The guide rail is placed in a horizontal step-type, which is suitable for high-speed and high-strength cutting. It has excellent reliability and precision retention. The 35° inclined bed design is convenient for operators to get on and off the workpiece, and can also ensure smooth chip removal.
he spindle has high precision and strong rigidity, can achieve stepless speed regulation and constant speed cutting, and starts quickly.
The main transmission system of the machine tool is driven by an AC servo motor, and the spindle is directly driven by a high-efficiency synchronous belt. The noise problem caused by the gearbox transmission chain is avoided.
The X/Z axis adopts a servo motor and a ball screw directly connected, with high feed accuracy, which can obtain higher processing accuracy.
Each lubrication point can be quantitatively lubricated, temperature rise and thermal deformation.
The T-type tool holder reduces the tool change time, a variety of tool arrangement combinations, and improves production efficiency.
Fully protective internal protection effectively isolates important components from the processing area, with better oil, water and dustproof effects, and longer machine tool service life.
| Item Model | Component name and unit | CK6146 |
| Processing range | Max turning diameter over bed(mm) | Φ380 |
| Max diameter on the pallet(mm) | Φ100 | |
| Max machining length(mm) | 180 | |
| Max bar diameter(mm) | Φ56 | |
| Spindle through-hole diameter(mm) | Φ45 | |
| Feed | X-axis Max travel(mm) | 800 |
| Z-axis Max travel(mm) | 380 | |
| X-axis fast movement speed(m/min) | 24 | |
| Z-axis fast movement speed(m/min) | 24 | |
| Repeat positioning accuracy(mm) | ±0.002 | |
| Guide rail form | Linear guide rail | |
| Spindle | Sleeve spindle unit(model type) | A2-5 |
| Spindle motor power(KW) | 5.5 | |
| Max speed(r/min) | 4000 | |
| Chuck size(Inch) | 6" | |
| Tool carrier | Tool holder mode | Row tool |
| Tool holder specification(mm) | 20*20 | |
| Boring tool holder | Φ20 | |
| Tool table size(mm) | 550*220 | |
| Specification | Machine net weight(KG) | ≈2600 |
| Length * width * height(mm) | 1900*1550*1780 | |
| Other | Optional configuration | |
| Range of application |
| Item Model | Component name and unit | CK6146 |
| Processing range | Max turning diameter over bed(mm) | Φ380 |
| Max diameter on the pallet(mm) | Φ100 | |
| Max machining length(mm) | 180 | |
| Max bar diameter(mm) | Φ56 | |
| Spindle through-hole diameter(mm) | Φ45 | |
| Feed | X-axis Max travel(mm) | 800 |
| Z-axis Max travel(mm) | 380 | |
| X-axis fast movement speed(m/min) | 24 | |
| Z-axis fast movement speed(m/min) | 24 | |
| Repeat positioning accuracy(mm) | ±0.002 | |
| Guide rail form | Linear guide rail | |
| Spindle | Sleeve spindle unit(model type) | A2-5 |
| Spindle motor power(KW) | 5.5 | |
| Max speed(r/min) | 4000 | |
| Chuck size(Inch) | 6" | |
| Tool carrier | Tool holder mode | Row tool |
| Tool holder specification(mm) | 20*20 | |
| Boring tool holder | Φ20 | |
| Tool table size(mm) | 550*220 | |
| Specification | Machine net weight(KG) | ≈2600 |
| Length * width * height(mm) | 1900*1550*1780 | |
| Other | Optional configuration | |
| Range of application |
