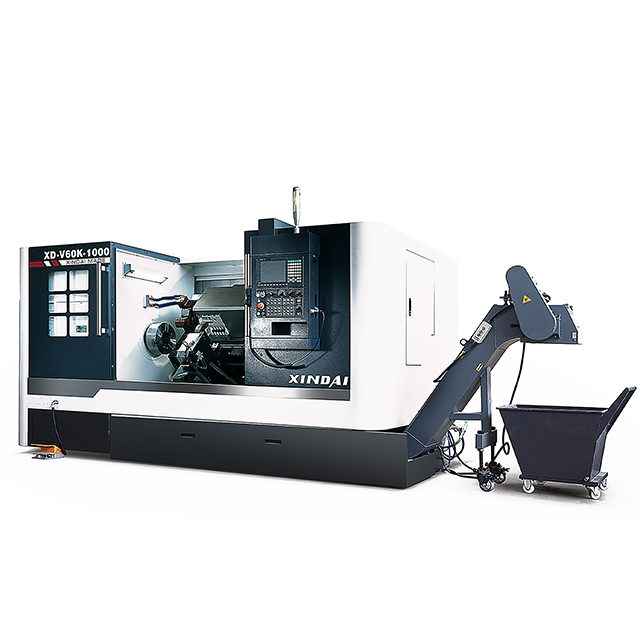

Machine tool adopts horizontal high-strength integral cast iron bed, the bed adopts Little Giant design structure, the guideway is placed in horizontal step type, which is suitable for high-speed and high-intensity cutting, and has excellent reliability and accuracy retention.
Supporting A2-6 or A2-8 heavy cutting spindle, strong rigidity, high precision, can easily cope with all kinds of steel parts of heavy cutting.
Adopting long stroke servo tailstock, with the follow tool holder, it can easily process the long shaft parts within 1000mm.
The main transmission system of the machine tool is driven by AC servo motor, with high-efficiency synchronous belt to directly drive the spindle. It avoids the noise problem caused by gear box transmission chain.
X / Z-axis using high-power servo motors and ball screws directly connected to the feed torque is strong, high precision machining.
Equipped with high-performance servo turret with large tool disc, it has good reliability and repeatable positioning accuracy while realising fast tool change.
Hydraulic chuck and tailstock sleeve expansion and contraction can be controlled by programme and foot switch.
Machine tool is fully closed protection, supporting embedded chip conveyor and water tank, avoiding the leakage of coolant, smooth chip removal, convenient loading and unloading, easy to operate.
It is suitable for long shaft processing in automobile parts, transmission industry, wind power generation and other industries.
Machine tool adopts horizontal high-strength integral cast iron bed, the bed adopts Little Giant design structure, the guideway is placed in horizontal step type, which is suitable for high-speed and high-intensity cutting, and has excellent reliability and accuracy retention.
Supporting A2-6 or A2-8 heavy cutting spindle, strong rigidity, high precision, can easily cope with all kinds of steel parts of heavy cutting.
Adopting long stroke servo tailstock, with the follow tool holder, it can easily process the long shaft parts within 1000mm.
The main transmission system of the machine tool is driven by AC servo motor, with high-efficiency synchronous belt to directly drive the spindle. It avoids the noise problem caused by gear box transmission chain.
X / Z-axis using high-power servo motors and ball screws directly connected to the feed torque is strong, high precision machining.
Equipped with high-performance servo turret with large tool disc, it has good reliability and repeatable positioning accuracy while realising fast tool change.
Hydraulic chuck and tailstock sleeve expansion and contraction can be controlled by programme and foot switch.
Machine tool is fully closed protection, supporting embedded chip conveyor and water tank, avoiding the leakage of coolant, smooth chip removal, convenient loading and unloading, easy to operate.
It is suitable for long shaft processing in automobile parts, transmission industry, wind power generation and other industries.
| Item | Component and model type | XD-V60K-1000(1500) |
| Processing range | Max turning diameter(mm) | 550 |
| Max diameter on the pallet(mm) | 250 | |
| Max machining length(mm) | 1000（1500） | |
| Spindle through-hole(mm) | 65/93 optional | |
| Max bar diameter(mm) | 52/80 optional | |
| Max cutting diameter of bar | 250 | |
| Max cutting diameter of metal discs | 550 | |
| Min machining length between thimbles | 90 | |
| Max machining length between thimbles | 1050 | |
| Feed | X-axis travel(mm) | 500 |
| Y-axis travel(mm) | / | |
| Z-axis travel(mm) | 1100（1600） | |
| X-axis fast movement speed(m/min) | 18 | |
| Z-axis fast movement speed(m/min) | 18 | |
| Repeat positioning accuracy(mm) | ±0.004 | |
| Guide rail form | Track | |
| X-axis guide rail width(mm) | 35 | |
| Z-axis guide rail width(mm) | 45 | |
| Lead screw diameter(mm) | X/Y 40/tailstock 40 | |
| Spindle | Spindle | A2-6/A2-8 optional |
| Spindle motor power(KW) | 15 | |
| Max speed(r/min) | 2500 | |
| Toolpost | Turret form | 12-station servo turret(100、Φ420) |
| Live tool holder type | Tool holder: 80825 | |
| Tool holder specification(mm) | round hole：32/40 square of blade：25*25 | |
| Adjacent tool changing time(S) | 0.35 | |
| Tailstock | Tailstock travel | 980 |
| Tailstock form | Servo tailstock | |
| Tailstock sleeve taper(Mohs) | 5# | |
| Specification | Machine weight(T) | 6.1 |
| Length * width * height(mm) | 3500*1940*1960（4100*1940*1960） | |
| Optional configuration | Power turret,chip conveyor,truss manipulator,feeder | |
| Socpe of application | Long axis category,Large cap category | |
| Item | Component and model type | XD-V60K-1000(1500) |
| Processing range | Max turning diameter(mm) | 550 |
| Max diameter on the pallet(mm) | 250 | |
| Max machining length(mm) | 1000（1500） | |
| Spindle through-hole(mm) | 65/93 optional | |
| Max bar diameter(mm) | 52/80 optional | |
| Max cutting diameter of bar | 250 | |
| Max cutting diameter of metal discs | 550 | |
| Min machining length between thimbles | 90 | |
| Max machining length between thimbles | 1050 | |
| Feed | X-axis travel(mm) | 500 |
| Y-axis travel(mm) | / | |
| Z-axis travel(mm) | 1100（1600） | |
| X-axis fast movement speed(m/min) | 18 | |
| Z-axis fast movement speed(m/min) | 18 | |
| Repeat positioning accuracy(mm) | ±0.004 | |
| Guide rail form | Track | |
| X-axis guide rail width(mm) | 35 | |
| Z-axis guide rail width(mm) | 45 | |
| Lead screw diameter(mm) | X/Y 40/tailstock 40 | |
| Spindle | Spindle | A2-6/A2-8 optional |
| Spindle motor power(KW) | 15 | |
| Max speed(r/min) | 2500 | |
| Toolpost | Turret form | 12-station servo turret(100、Φ420) |
| Live tool holder type | Tool holder: 80825 | |
| Tool holder specification(mm) | round hole：32/40 square of blade：25*25 | |
| Adjacent tool changing time(S) | 0.35 | |
| Tailstock | Tailstock travel | 980 |
| Tailstock form | Servo tailstock | |
| Tailstock sleeve taper(Mohs) | 5# | |
| Specification | Machine weight(T) | 6.1 |
| Length * width * height(mm) | 3500*1940*1960（4100*1940*1960） | |
| Optional configuration | Power turret,chip conveyor,truss manipulator,feeder | |
| Socpe of application | Long axis category,Large cap category | |
