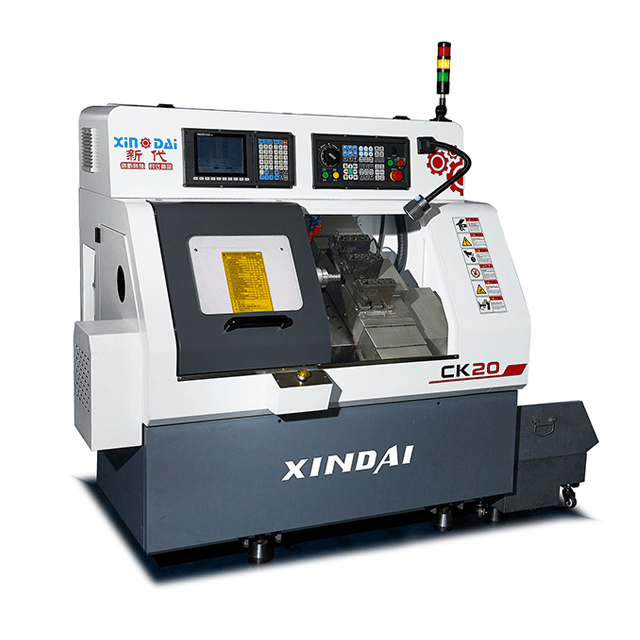

MINI type slanting bed chip conveyor: CK20
It adopts the whole inclined casting bed structure, small volume, large stroke, and convenient chip removal.
Machine tool is equipped with bus control system, high speed, high precision and high efficiency, specially designed for processing high precision small parts.
It can be equipped with automatic oil film type feeder, which can realise unmanned automatic production.
Widely used in precision machining of instruments, electronic components, clocks and other hardware precision small parts.
MINI type slanting bed chip conveyor: CK20
It adopts the whole inclined casting bed structure, small volume, large stroke, and convenient chip removal.
Machine tool is equipped with bus control system, high speed, high precision and high efficiency, specially designed for processing high precision small parts.
It can be equipped with automatic oil film type feeder, which can realise unmanned automatic production.
Widely used in precision machining of instruments, electronic components, clocks and other hardware precision small parts.
| Item/ Model | Component name and unit | CK20/25 |
| Processing range | Max turning diameter over bed(mm) | Φ250 |
| Max diameter on the pallet(mm) | Φ80 | |
| Max machining length(mm) | 100 | |
| Max bar diameter(mm) | Φ28/Φ32 | |
| Spindle through-hole diameter(mm) | Φ20/Φ25 | |
| Feed | X-axis Max travel(mm) | 500 |
| Z-axis Max travel(mm) | 200 | |
| X-axis fast movement speed(m/min) | 28 | |
| Z-axis fast movement speed(m/min) | 28 | |
| Repeat positioning accuracy(mm) | ±0.002 | |
| Guide rail form | Linear guide rail | |
| Spindle | Sleeve spindle unit(model) | A2-4（Small） |
| Spindle motor power(KW) | 4 | |
| Max speed(r/min) | 6000 | |
| Chuck size(Inch) | 4 | |
| Toolpost | Tool holder mode | Row tool |
| Tool holder specification(mm) | 16*16 | |
| Boring tool holder(mm) | Φ16 | |
| Tool table size(mm) | 350*120 | |
| Specification | Machine net weight(KG) | ≈1100 |
| Length * width * height(mm) | 1300*1180*1300 | |
| Other | Optional configuration | splicer、chip conveyor,truss manipulator,feeder |
| Socpe of application | metal disc accessories、Hardware accessories |
