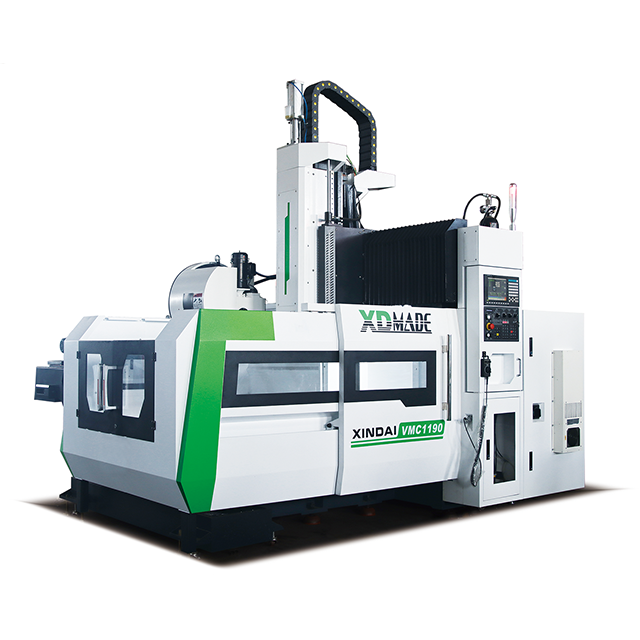

Machining Center-VMC1190

1. The spindle adopts Taiwan spindle unit, with strong axial and radial bearing capacity, the speed is up to 6000rpm, the spindle adopts the centre blowing structure, after the spindle loosens the knife, it quickly cleans the spindle inner pile with the centre high-pressure gas to ensure the precision of tool clamping.




2. X, Y, Z three-axis servo control, using Taiwan ball screw direct connection structure, screw installation for pre-stretching, connection rigidity high feed speed; feed servo motor directly transfer power to the ball screw, no backlash, to ensure the positioning accuracy of the machine tool. z-axis is equipped with a hydraulic balancing device, to ensure that the same driving force for up and down movement.




3. The X, Y, Z three directions guideway, screws are closed protection, to ensure the cleanliness of the screws and guideway, to ensure the transmission and movement precision of the machine tool.




4. The outer protection of the machine tool adopts ring-shaped closed structure design.




5. Machining Centre Configuration: Adopt Taiwan 24 tools umbrella type tool changer, shortest path tool change, accurate tool change, short time, high efficiency, and meet the reliability requirements after running test.




6. Adopt centralised automatic lubrication device, automatic intermittent lubrication with timing and quantity, stable and reliable work.




7. The electrical system of the machine tool is neatly wired and reasonably structured, and the electric box is well sealed and equipped with a heat exchange system, which ensures a good use environment.




8. CNC system (Fanuc, Mitsubishi, Siemens, Guangdao, New Generation) can be optional, the system has the functions of chaining, safety protection and fault diagnosis alarm, equipped with RS232 standard communication interface.




9. This machine tool is used for CNC milling, boring, drilling, tapping, processing of rigid parts, cast steel parts, cast iron parts, etc.. The machine tool using the attachment head can achieve a variety of discs, plates, shells, moulds and other complex parts in a clamping to complete the drilling, milling, boring.

Expansion, reaming, tapping and other processes, can be used for small and medium batch parts processing and manufacturing, the processing of complex parts can also be formed into an automatic production line for mass production, to ensure the quality and production of parts.

Built-in spindle motor: The high torque motor is directly integrated with the spindle to minimise power loss, resulting in excellent machining efficiency. Coolant direct injection bearing cooling method, motor and bed are also cooled at the same time to minimise thermal deformation, ensuring the processing Vertical disc tool changer: cylindrical cam dividing machine, high division accuracy, low failure rate, simple structure, easy maintenance and long service life. All imported engineering plastic knife cover, light quality, high strength, not easy to damage. Double bearing separated knife arm, high concentricity, low noise. The whole series of electronic switch adopts imported original.
