5-Axis U380A
XDMADE

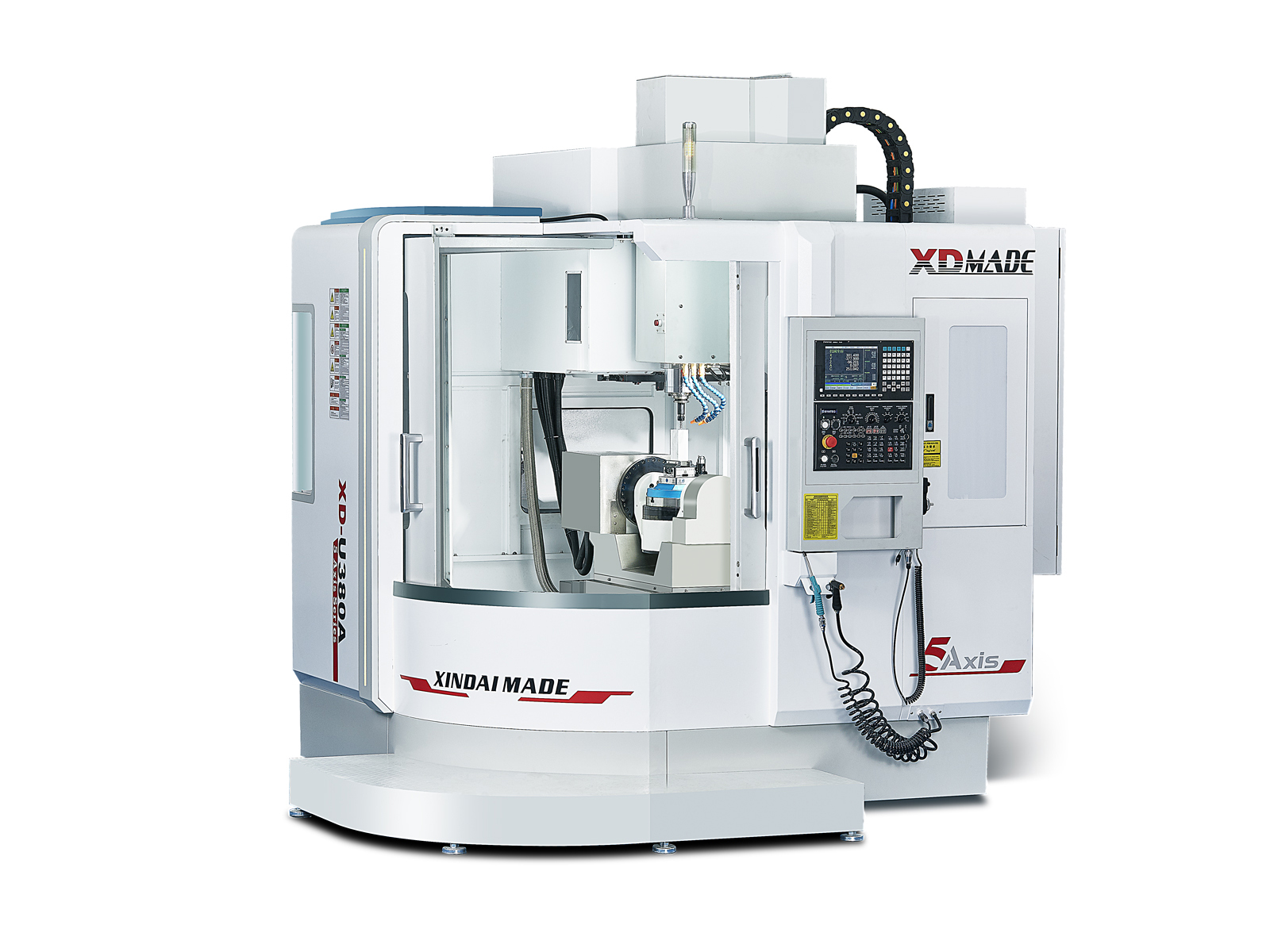

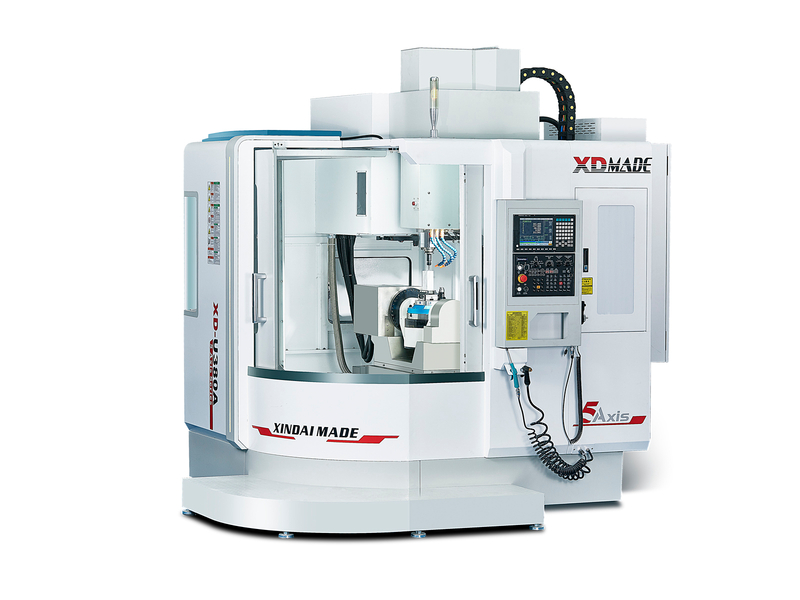

The XD-U380A High-Speed 5-Axis Machining Center is engineered for precision and efficiency, ideal for industries like aerospace, medical devices, and mold manufacturing. Powered by the Syntec 220MA-5-15-S CNC system, it combines user-friendly controls with advanced multi-axis programming capabilities.
Key Features:
Spindle: BBT40-11KW high-speed spindle (15,000 rpm) with water-cooling (±0.5°C) ensures stable performance under heavy loads.
Accuracy & Drive: X/Y/Z axes feature Syntec servo drives and C3-grade ball screws (24m/min rapid traverse); direct-drive torque motors on A/C axes achieve 6 arc-second repeatability, enhanced by rotary encoders.
Tool Management: 24-tool servo magazine supports tools up to 150mm diameter (adjacent empty slot), enabling efficient tool changes.
Robust Structure: High-resin sand cast iron bed with THK/Hiwin roller guides (P-class, 35mm width) ensures vibration resistance and durability.
Performance:

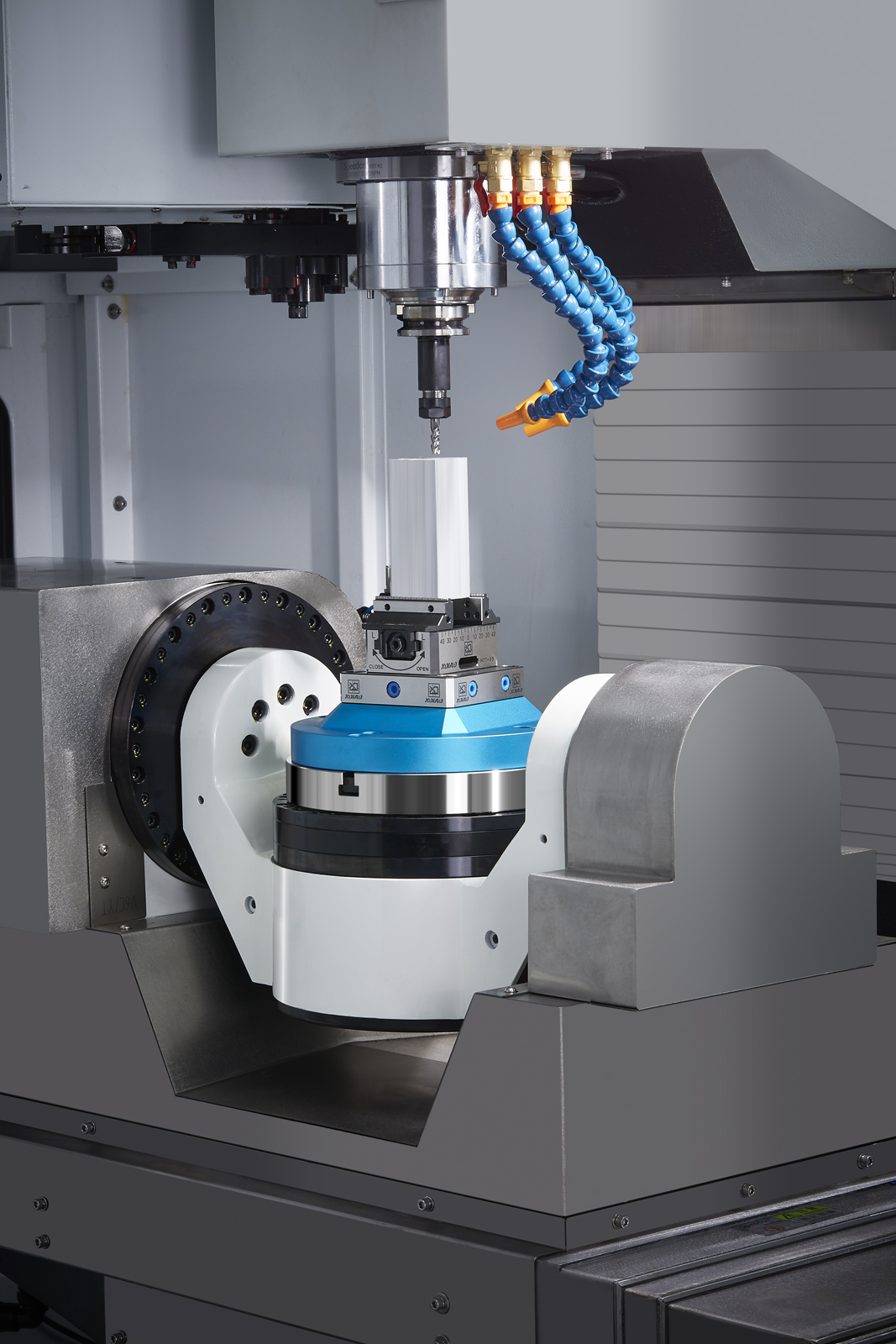

Worktable: Φ260mm, 100kg load capacity; A-axis tilts ±110° for machining complex parts up to 400mm diameter.
Tool Capacity: Max. 220mm length (with holder) and 6kg weight, suitable for heavy-duty cutting.
Advanced Options:
Equipped with control cabinet AC, telescopic covers, and touch probe for automation and ease of maintenance.
Complies with JIS standards (±0.006mm/300mm positioning accuracy), meeting tight-tolerance requirements.
Applications:
Mold making, impeller machining, aerospace components, and automotive parts production.
